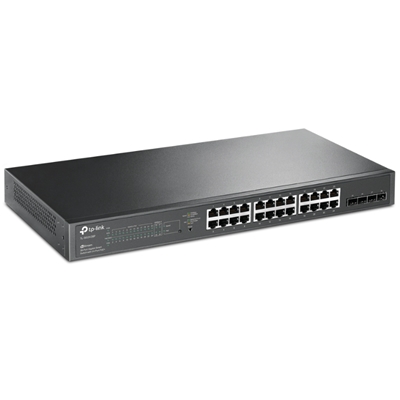

SWITCH 24P LAN GIGABIT TP-LINK TL-SG2428P (T1600G-28PS)POE+ SMART CON 4 COMBO SFP – GARANZIA A VITA

371,10

SWITCH 24P LAN GIGABIT TP-LINK TL-SG2428P (T1600G-28PS)POE+ SMART CON 4 COMBO SFP – GARANZIA A VITA
In arrivo 8 pz il 2024-02-02

31 disponibili

COD: TL-SG2428P Categoria:

Descrizione

SWITCH 24P LAN GIGABIT TP-LINK TL-SG2428P (T1600G-28PS)POE+ SMART CON 4 COMBO SFP – GARANZIA A VITA

CARATTERISTICHE HARDWARE
Standard e protocolli: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interfaccia:
• 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 4× Gigabit SFP Slots
Media:
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 1000BASE-X: MMF, SMF
Numero ventole: 2
Alimentazione: 100-240V AC, 50/60Hz
Porte PoE+:
• Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports
• Power Supply: 250 W
Porte PoE:
• Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports
• PoE Power Budget: 250 W*
Dimensioni ( L x P x A ): 440 × 220 × 44 mm
Tipo di montaggio: Rack Mountable
Max Power Consumption:
• 32.1 W (110 V/ 60 Hz with no PD connected)
• 308.6 W (110 V/ 60 Hz with 250 W PD connected)
Max Heat Dissipation:
• 109.53 BTU/h (with no PD connected)
• 1052.94 BTU/h (with 250 W PD connected)

PRESTAZIONI
Capacità di switching: 56 Gbps
Bandwidth/Backplane: 56 Gbps
Packet Forwarding Rate: 41.7 Mpps
Tabella ARP: 8K
Buffer (pacchetti): 4.1 Mbit
Jumbo frame: 9KB

CARATTERISTICHE SOFTWARE
QoS (Quality of Service):
• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
– SP (Strict Priority)
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port/Flow based Rating Limit
• Smoother Performance
• Storm Control
– Multiple Control Modes(kbps/ratio)
– Broadcast/Multicast/Unknown-Unicast Control
Funzionalità L2 e L2+:
• 16 IP Interfaces
– Support IPv4/IPv6 Interface
• Static Routing
– 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
– DHCP Interface Relay
– DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
– Static link aggregation
– 802.3ad LACP
– Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
– 802.1D STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: TC Protect, BPDU Filter/Protect, Root Protect
• Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– CPU Mirroring
– One-to-One
– Many-to-One
– Flow-Based
– Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
VLAN:
• VLAN Group
– Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN
ACL (Access Control List):
• Support up to 230 entries
• Time-Range
– Time Slice
– Week Time-Range
– Absolute Time-Range
– Holiday
• Time-based ACL
• MAC ACL
– Source MAC
– Destination MAC
– VLAN ID
– User Priority
– Ether Type
• IP ACL
– Source IP
– Destination IP
– IP Protocol
– TCP Flag
– TCP/UDP Source Port
– TCP/UDP Destination Port
– DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
– Permit/Deny
• Policy Action
– Mirror
– Rate Limit
– Redirect
– QoS Remark
• ACL Rules Binding
– Port Binding
– VLAN Binding
• Actions for flows
– Mirror (to supported interface)
– Redirect (to supported interface)
– Rate Limit
– QoS Remark
Sicurezza:
• AAA
• 802.1X
– Port based authentication
– MAC (Host) based authentication
– Authentication Method includes PAP/EAP-MD5
– MAB
– Guest VLAN
– Support Radius authentication and accountability
• IP/IPv6-MAC Binding
– 512 Binding Entries
– DHCP Snooping
– DHCPv6 Snooping
– ARP Inspection
– ND Detection
• IP Source Guard
– 253 Entries
– Source IP+Source MAC
• IPv6 Source Guard
– 183 Entries
– Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
– Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
– kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control
IPv6:
• IPv6 Static Routing and ACL
• IPv6 Dual IPv4/IPv6
• IPv6 Interface
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
– DHCPv6 Client
– Ping6
– Tracert6
– Telnet(v6)
– IPv6 SNMP
– IPv6 SSH
– IPv6 SSL
– Http/Https
– IPv6 TFTP
Caratteristiche avanzate:
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
MIBs:
• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)

GESTIONE
Omada App: Yes
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2428P v1, v3 and above, while is not supported by TL-SG2428P v2)
Management Features:
• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
• TL-SG2428P
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
Requisiti di sistema: Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux.
Ambiente:
• Operating Temperature: 0–50 ℃ (32–122 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
