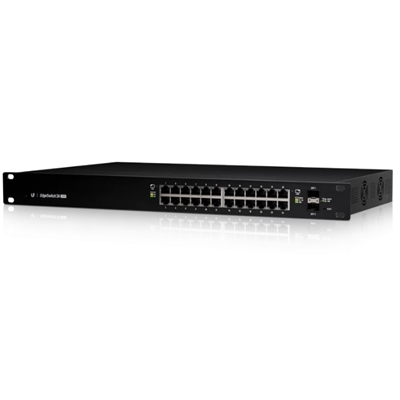

SWITCH 24P LAN GIGABIT UBIQUITI EDGESWITCH ES-24-250W POE+ – 2X SFP- MANAGED- 250W

Descrizione

SWITCH 24P LAN GIGABIT UBIQUITI EDGESWITCH ES-24-250W POE+ – 2X SFP- MANAGED- 250W

Mechanical
Dimensions: 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24″)
Weight: 4.7 kg (10.4 lb)

Hardware
Networking Interfaces:
– (24) 10/100/1000 Mbps RJ45 Ethernet Ports
– (2) 1 Gbps SFP Ethernet Ports
Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
Total Non-Blocking Throughput: 26 Gbps
Switching Capacity: 52 Gbps
Forwarding Rate: 38.69 Mpps
Max. Power Consumption:
– Includes PoE Output: 250W
– Excludes PoE Output: 30W
Power Method: 100-240VAC/50-60 Hz, Universal Input
Power Supply: AC/DC, Internal, 250W DC
LEDs Per Port:
– RJ45 Data Ports: PoE, Speed/Link/Activity
– SFP+/SFP Data Ports: Speed/Link/Activity
Rackmount: Yes, 1U High
ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
Shock and Vibration: ETSI300-019-1.4 Standard
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

PoE Per Port
PoE Interfaces:
– PoE/PoE+ (Pins 1, 2+; 3, 6-)
– 24VDC Passive PoE (Pins 4, 5+; 7, 😎
Max. PoE+ Wattage per Port by PSE: 34.2W
Voltage Range PoE+ Mode: 50–57V
Max. Passive PoE Wattage per Port: 17W
24V Passive PoE Voltage Range: 20-27V
