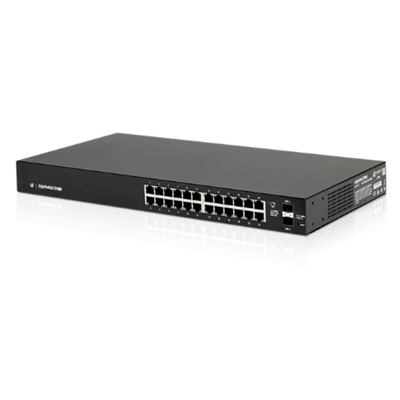

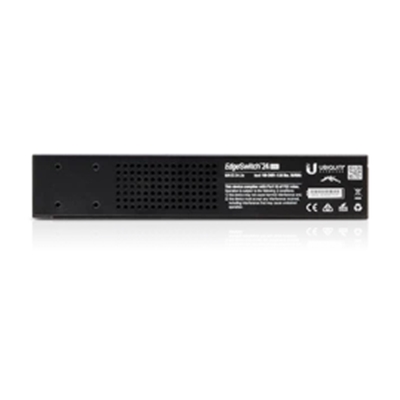

SWITCH 24P LAN GIGABIT UBIQUITI EDGESWITCH ES-24-LITE NON POE 2P SFP
Mechanical
Dimensions: 443 x 43 x 221 mm (17.44 x 1.69 x 8.7″)
Weight:
– Without Rack-Mount Brackets: 2.51 kg (5.53 lb)
– With Rack-Mount Brackets: 2.6 kg (5.7 lb)
Hardware
Networking Interfaces:
– (24) 10/100/1000 Mbps RJ45 Ethernet Ports
– (2) 1/10 Gbps SFP+ Ethernet Ports
Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
Total Non-Blocking Throughput: 26 Gbps
Switching Capacity: 52 Gbps
Forwarding Rate: 38.69 Mpps
Max. AC Power Consumption: 25W
Power Method:
– AC: 100-240VAC/50-60 Hz, Universal Input
– DC: DC 25W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Power Supply: AC/DC, Internal, 25W DC
LEDs Per Port:
– Serial Console Port: N/A
– RJ45 Data Ports: Speed/Link/Activity
– SFP+/SFP Data Ports: Speed/Link/Activity
Rackmount: Yes, 1U High
ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
Shock and Vibration: ETSI300-019-1.4 Standard
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
