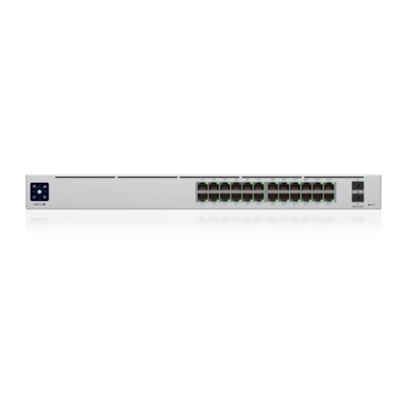

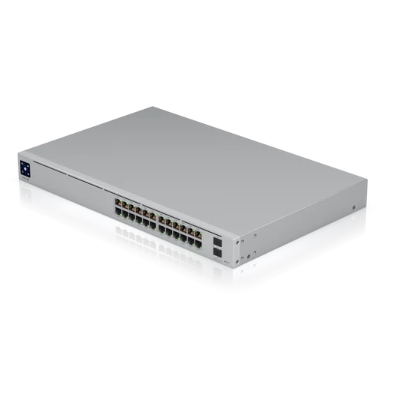

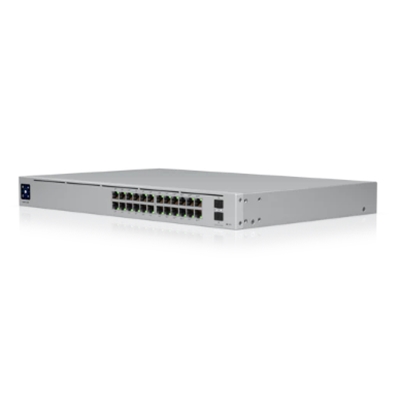

SWITCH 24P POE LAN GIGABIT UBIQUITI USW-PRO-24-POE GEN2 400W (DI CUI 8 POE++802.3BT) – 2P SFP+

Descrizione

SWITCH 24P POE LAN GIGABIT UBIQUITI USW-PRO-24-POE GEN2 400W (DI CUI 8 POE++802.3BT) – 2P SFP+

Mechanical
Dimensions: 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72″)
Weight:
– Without Rackmount Brackets: 4.30 kg (9.48 lb)
– With Rackmount Brackets: 4.39 kg (9.68 lb)

Hardware
Networking Interface:
– (24) 10/100/1000 RJ45 Ports
– (2) 1/10G SFP+ Ethernet Ports
Management Interface: Ethernet In-Band
Total Non-Blocking Throughput: 44 Gbps
Switching Capacity: 88 Gbps
Forwarding Rate: 65.472 Mpps
Power Method:
– Universal Input: 100-240VAC/50-60 Hz
– USP RPS DC Input: 52VDC, 7.69A; 11.5VDC, 2.61A
Power Supply: AC/DC, Internal, 450W
Supported Voltage Range: 100 to 240VAC
Max. Power Consumption (Excluding PoE Output): 50W
LEDs:
– System: Status
– RJ45 Data Ports: PoE; Speed/Link/Activity
– SFP+ Data Ports: Link/Activity
ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration: ETSI300-019-1.4 Standard
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 10 to 90% Noncondensing
Certifications: CE, FCC, IC

PoE
Total Available PoE: 400W
PoE Interfaces:
– Ports 1-16: PoE/PoE+(pins 1, 2+; 3, 6-)
– Ports 17-24: 60W PoE++ (Pins 1, 2+; 3, 6-) (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 😎
Max. PoE Wattage per Port by PSE:
– PoE+: 32W
– PoE++: 64W
Voltage Range PoE Mode: 44-57V
Voltage Range PoE+ Mode: 50-57V
