Descrizione

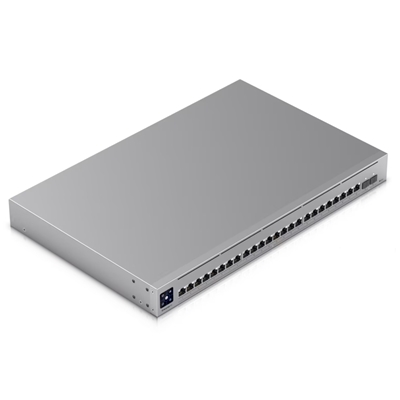

SWITCH 24P UBIQUITI USW-ENTERPRISEXG-24-EU 24P SFP+ 10GBPS
Mechanical
Dimensions: 442 x 44 x 285 mm (17.4 x 1.7 x 11.2″)
Weight:
– Without mounting brackets: 4.47 kg (9.85 lb)
– With mounting brackets: 4.57 kg (11.02 lb)
Enclosure material: SGCC steel
Hardware

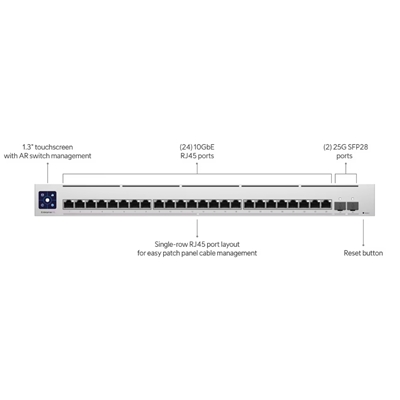

Networking interface: (24) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet
Management interface: Ethernet In-Band
SFP28 interface: (2) 25G SFP28 ports
Total non-blocking throughput: 290 Gbps
Switching capacity: 580 Gbps
Forwarding rate: 431.52 Mpps
Max. power consumption: 100W

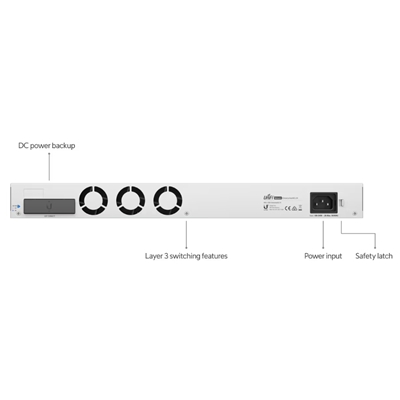

Power method:
– (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz
– (1) USP-RPS DC input, 11.5V DC, 8.7A
Power supply: AC/DC, internal, 100W
Services: SMB Layer 3 GbE switch
ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
LCM display:
– (1) 1.3″ LCM color touchscreen
– Bootup animation: bootup in progress
– Firmware upgrade icon: firmware upgrading
Button: Factory reset
Operating temperature: -5 to 40° C (23 to 104° F)
Operating humidity: 10 to 95% noncondensing
Certifications: CE, FCC, IC
LEDs
System: Status
Ethernet: Link/activity
Application Requirements
UniFi Network: Version 6.1.67 and later
