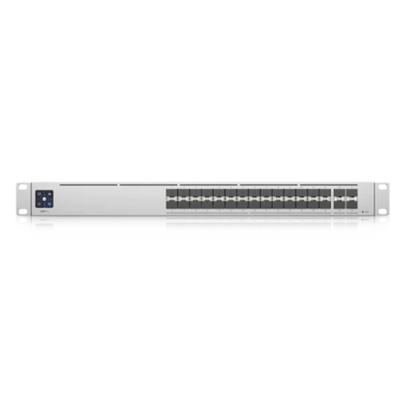

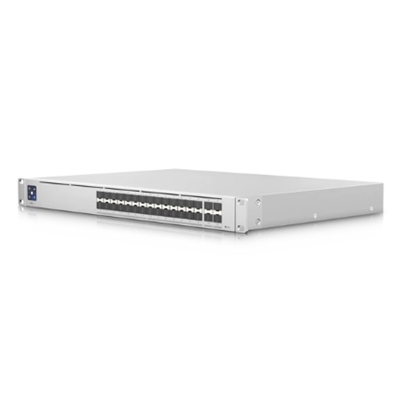

SWITCH 28P 10G SFP+ 4P 25G SFP28 UBIQUITI USW-PRO-AGGREGATION – L3 – 760GBIT/S
Mechanical
Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7″)
Weight:
– Without Mount: 4.6 kg (10.14 lb)
– With Mount: 4.7 kg (10.36 lb)
Enclosure Material: SGCC Steel
Hardware
Total Non-Blocking Throughput: 380 Gbps
Switching Capacity: 760 Gbps
Forwarding Rate: 565.44 Mpps
Max. Power Consumption: 100W
Power Method:
– (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
– (1) USP-RPS DC input, 11.5VDC, 8.7A
Power Supply: AC/DC, Internal, 100W
Network Interface:
– (28) 1/10 Gbps SFP+ Ethernet
– (4) 1/10/25 Gbps SFP28 Ethernet*
LCM Display:
– (1) 1.3″ Touchscreen
– Bootup Animation: Bootup in Progress
– Firmware Upgrade Icon: Firmware Upgrading
– Steady White: Factory Defaults, Awaiting Adoption
– Steady Blue: Device is Adopted
LEDs: SFP28/SFP+: White, Link and Activity
Management Interface: Ethernet In-Band
Modes: SMB Layer 3 10/25 G Fiber Switch
ESD/EMP Protection: Air: ± 16kV, Contact: ± 12kV
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 10 – 90% Noncondensing
Certifications: CE, FCC, IC
