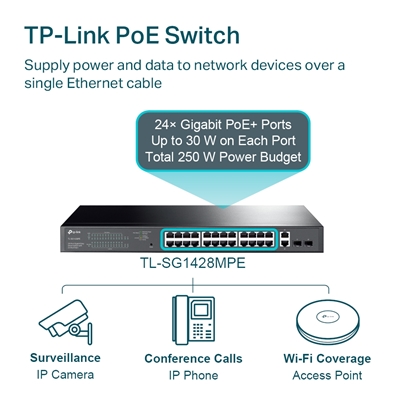

SWITCH 28P GIGABIT CON 24P POE+ TP-LINK TL-SG1428PE EASY SMART SWITCH 2P GIGABIT NO POE+2P GIGABIT SFP

Descrizione

SWITCH 28P GIGABIT CON 24P POE+ TP-LINK TL-SG1428PE EASY SMART SWITCH 2P GIGABIT NO POE+2P GIGABIT SFP

CARATTERISTICHE HARDWARE
Standard e protocolli:
– IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
– IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interfaccia:
– 26 x 10/100/1000 Mbps RJ45 Ports
– 2 x Gigabit SFP Ports
Media:
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 1000BASE-X MMF, SMF
Numero ventole: 2 Fans
Physical security lock: Yes
Alimentazione: 100-240V AC, 50/60 Hz
Porte PoE+:
– Standard: 802.3at/802.3af compliant
– PoE+ Ports: 24 Ports
– Power Supply: 250 W
Dimensioni ( L x P x A ): 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Tipo di montaggio: Rack Mountable
Max Power Consumption:
– 27 W (220/50Hz. no PD connected)
– 304.7 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation:
– 92.07 BTU/h (no PD connected)
– 1039.03 BTU/h (with 250 W PD connected)

PRESTAZIONI
Capacità di switching: 56 Gbps
Packet Forwarding Rate: 41.7 Mbps
Tabella ARP: 8K
Buffer (pacchetti): 4.1 Mbit
Jumbo frame: 9 KB

CARATTERISTICHE SOFTWARE
QoS (Quality of Service):
– Support Port-based 802.1p/DSCP priority
– Support 4 priority queues
– Rate Limit
– Storm Control
Funzionalità L2:
– IGMP Snooping V1/V2/V3
– Static Link Aggregation
– Port Mirroring
– Cable Diagnostics
– Loop Prevention
– PoE Auto Recovery
VLAN:
– Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
– MTU/Port/Tag VLAN
Gestione:
– Web-Based GUI
– Easy Smart Configuration Utility
Metodo di trasmissione: Store-And-Forward

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
– TL-SG1428PE
– Power Cord
– Installation Guide
– Rackmount Kit
– Rubber Feet
Ambiente:
– Operating Temperature: 0°C~50°C (32°F~122°F)
– Storage Temperature: -40°C~70°C (-40°F~158°F)
– Operating Humidity: 10% ~ 90% non-condensing
– Storage Humidity: 5%~90% non-condensing
