Descrizione

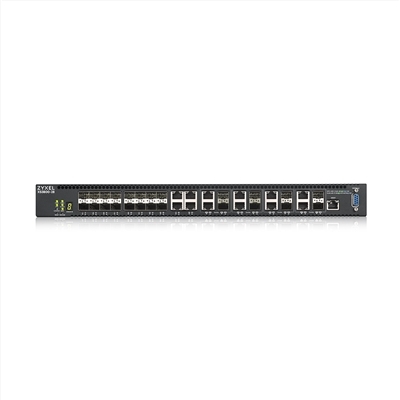

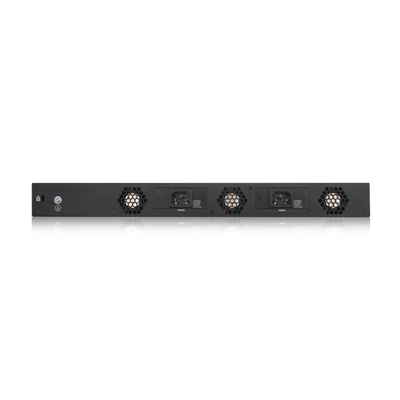

SWITCH 28P LAN GIGABIT ZYXEL XS3800-28-ZZ0101F NEBULAFLEX MAN.LAYER3LITE-4P MULTIGIGA RJ45+16P 10GB SFP+ 8P MULTIGB DP-SERV.1Y
Port Density
Total port count: 28
100M/1G/2.5G/5G/10G Ethernet (RJ-45): 4
Multi-Gigabit combo (100M/1G/2.5G/5G/10G) RJ-45/(1G/10G) SFP+: 8
1G/10G SFP+: 16
Performance
Switching capacity (Gbps): 560
Forwarding rate (Mpps): 416
Packet buffer (byte): 4 MB
MAC address table: 32 K
L3 forwarding table: Max. 4 K IPv4 entries, Max. 2 K IPv6 entries
Routing table: 1K
IP interface: 128
Flash/RAM: 64 MB/8 GB
Power
Input: Dual power, 100 – 240 V AC, 50/60 Hz
Max. power consumption (watt): 86.97
Physical Specifications
Dimensions (WxDxH)(mm/in.): 441 x 360 x 44/17.36 x 14.17 x 1.73
Weight (kg/lb.): 4.81/10.6
Included accessories:
– Power cord
– Rack mounting kit
Environmental Specifications
Operating:
– Temperature 0°C to 50°C/32°F to 122°F
– Humidity 10% to 95% (non-condensing)
Storage:
– Temperature -40°C to 70°C/-40°F to 185°F
– Humidity 10% to 95% (non-condensing)
MTBF (hr): 656,274.78
Heat dissipation (BTU/hr): 296.57
Acoustic noise @ 25°C (dBA): 58.2
