Descrizione

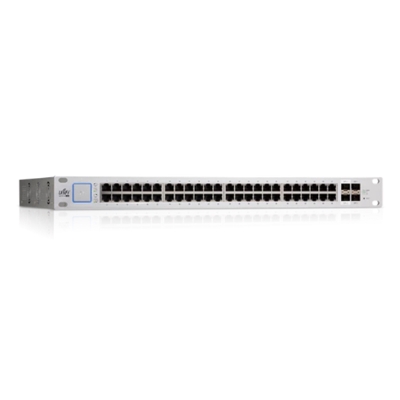

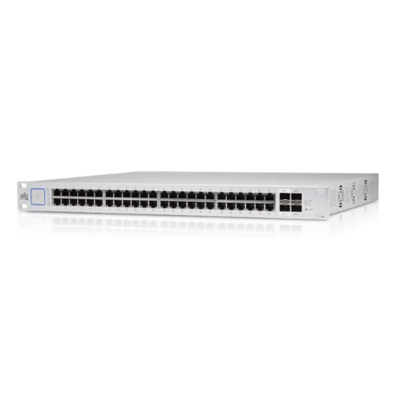

SWITCH 48P LAN GIGABIT UBIQUITI UNIFI US-48-500W MANAGED 2P SFP -SUPP. POE-
Mechanical
Dimensions: 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75″)
Weight: 6.1 kg (13.5 lb)
Networking Interfaces:
– (48) 10/100/1000 Mbps RJ45 Ethernet Ports
– (2) 1/10 Gbps SFP+ Ethernet Ports
– (2) 1 Gbps SFP Ethernet Ports
Management Interface: (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
Total Non-Blocking Throughput: 70 Gbps
Switching Capacity: 140 Gbps
Forwarding Rate: 104.16 Mpps
MAC Address Table: 16384
Maximum Aggregations: 6
Monitoring Sessions: 1
Maximum VLANs: 255
Power Method: 100-240VAC/50-60 Hz, Universal Input
Power Supply: AC/DC, Internal, 500W DC
Max. Power Consumption:
– Including PoE Output: 500W
– Excluding PoE Output: 64W
LEDs Per Port:
– RJ45 Data Ports: PoE, Speed/Link/Activity
– SFP Data Ports: Speed/Link/Activity
Sound Level:
– Fan Level 0: 10.7 dBr
– Fan Level 1: 16.2 dBr
– Fan Level 2: 19.3 dBr
– Fan Level 3: 23.6 dBr
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration: ETSI300-019-1.4 Standard
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
PoE+ Per Port
PoE Interfaces:
– PoE/PoE+ (Pins 1, 2+; 3, 6-)
– 24VDC Passive PoE (Pins 4, 5+; 7, 😎
Max. PoE+ Wattage per Port by PSE: 34.2W
Voltage Range PoE+ Mode: 50–57V
Max. Passive PoE Wattage per Port: 17W
24V Passive PoE Voltage Range: 20-27V
