Descrizione

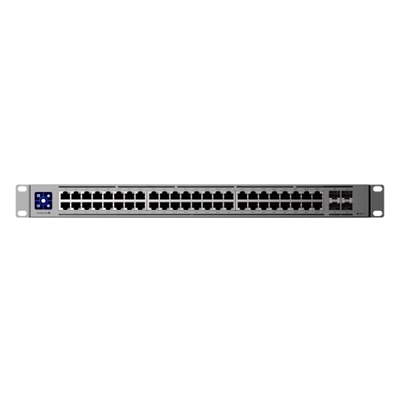

SWITCH 48P UBIQUITI USW-ENTERPRISE-48-POE L3 -48P 2.5GBE POE+ 4P 10G SFP+
Mechanical
Dimensions: 442 x 44 x 400 mm (17.4 x 1.7 x 15.7″)
Weight:
– Without mounting brackets: 6.2 kg (13.67 lb)
– With mounting brackets: 6.3 kg (13.89 lb)
Enclosure material: SGCC steel
Hardware

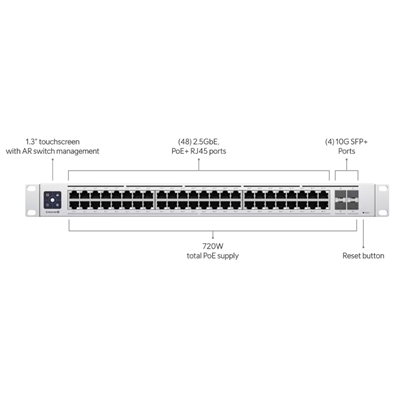

Networking interface: (48) 2.5 GbE RJ45 ports
Management interface: Ethernet In-Band
SFP+ interface: (4) 1/10G SFP+ ports
PoE interface: (48) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput: 160 Gbps
Switching capacity: 320 Gbps
Forwarding rate: 238.095 Mpps
Max. power consumption: 150W (Excluding PoE output)

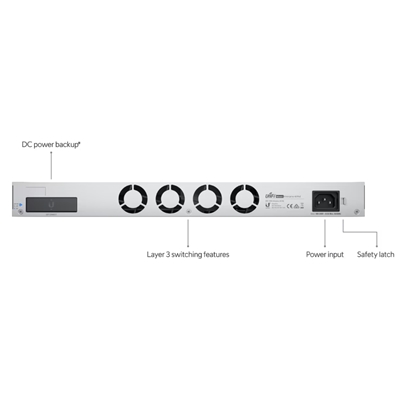

Power method:
– (1) Universal AC input, 100—240V AC, 10A Max, 50/60 Hz
– (1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A
Power supply: AC/DC, internal, 100—240V, 10A Max.
Total available PoE: 720W
Max. PoE+ wattage per port by PSE: 34.2W
Voltage range PoE mode: 44—57V
Voltage range PoE+ mode: 50—57V
Services: SMB Layer 3 PoE GbE Switch
ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
LCM display:
– (1) 1.3″ LCM color touchscreen
– Bootup animation: bootup in progress
– Firmware upgrade icon: firmware upgrading
Button: Factory reset
Operating temperature: -5 to 40° C (23 to 104° F)
Operating humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC
LEDs
System: Status
Ethernet: Link/activity
SFP+: Link/activity
Application Requirements
UniFi Network: Version 6.2.26 and later
