Descrizione

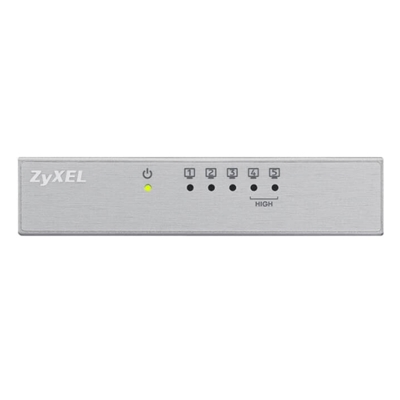

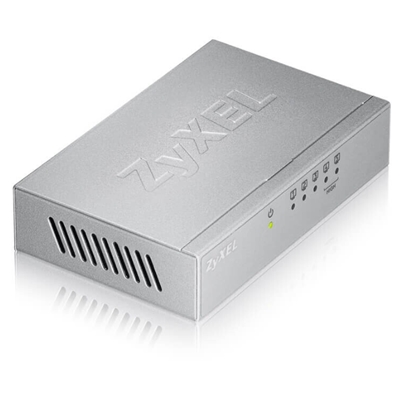

SWITCH 5P LAN 10/100M ZYXEL ES-105AV3-EU0101F V3 AUTO MDI/MDI-X DESKTOP METAL CASE 3P QOS -GARANZIA 5 ANNI-
System Specifications
Standard:
– IEEE 802.3 10BASE-T Ethernet
– IEEE 802.3u 100BASE-TX Fast Ethernet
– IEEE 802.3 Nway auto-negotiation
– IEEE 802.3x full duplex operation and flow control
– IEEE 802.3az Energy Efficient Ethernet
Performance:
– Data transfer rate (half duplex/full duplex):
– Ethernet: 10/20 Mbps
– Fast Ethernet: 100/200 Mbps
– MAC address table: 1 K
– Memory buffer: 56 KB
– Switching fabric (non-blocking): 1.0 Gbps
Features:
– Auto-MDI/MDIX in all ports
– Transmission method: Store-and-forward architecture
– Port-based QoS support
Hardware Specifications
Interface: 5x 10/100 Mbps Ethernet ports
QoS Ports: 2x high-priority QoS ports
LED Indicator:
– PWR: Power
– Per port: Link/Activity
Power Supply:
– Input: 100 to 240 V AC, 50/60 Hz
– Output: 5 V DC, 1 A
Power consumption (DC side): 0.92 watt max.
Physical Specifications
Item dimensions (WxDxH): 121 x 75 x 26 mm (4.8″ x 3.0″ x 1.0″)
Item weight: 224 g (0.49 lb.)
Packing dimensions (WxDxH): 127 x 82 x 95 mm (5.0″ x 3.2″ x 3.7″)
Packing weight: 373.5 g (0.83 lb.)
Environmental Specifications
Operating Environment:
– Temperature: 0°C to 40°C (32°F to 104°F)
– Humidity: 10% to 90% (Non-condensing)
Storage Environment:
– Temperature: -40°C to 70°C (-40°F to 158°F)
– Humidity: 10% to 95% (Non-condensing)
Certifications
EMC: CE, EAC, FCC, BSMI Class B
Package Contents
Ethernet switch
Power adapter
User’s guide
