Descrizione

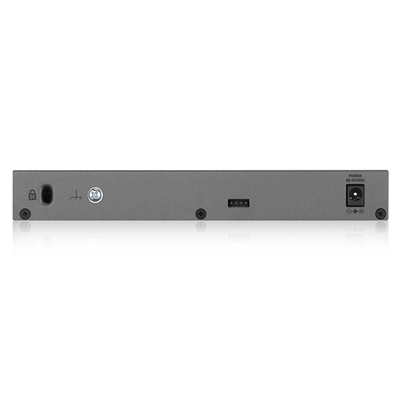

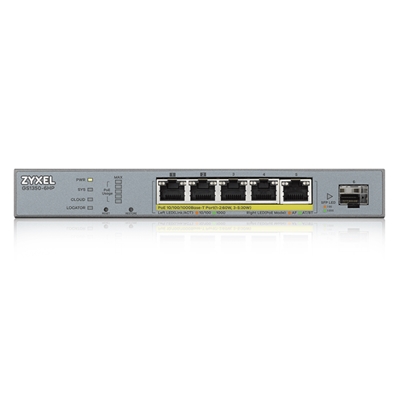

SWITCH 5P LAN GIGABIT POE ZYXEL GS1350-6HP-EU0101F NEBULAFLEX MANAGED X CCTV – 1P SFP-1Y SERV.NEBULAPRO
Model
Product name: 5-port GbE Smart Managed PoE Switch with GbE Uplink
Switch class: Smart Managed
Port Density
Total port count: 6
100/1000 Mbps: 5
Gigabit SFP: 1
Gigabit combo (RJ-45/SFP): –
Configurable extended range ports: 5
PoE
PoE ports: 5
Total PoE budget (watt): 60
PoE Standard: 802.3af/at, 802.3bt (port 1-2)
Performance
Switching capacity (Gbps): 12
Forwarding rate (Mpps): 8.9
Packet buffer (byte): 525 K
MAC address table: 8 K
Power
Input: 52 V – 57 V DC
Max. power consumption (watt): 72
Physical Specifications
Dimensions (WxDxH)(mm/in.): 193 x 84 x 26 / 7.6 x 3.31 x1.02
Weight (kg/lb.): 0.41/0.9
Included accessories: Power adapter, Wall-mount kit
ESD/Surge Protections
Ethernet port surge protection: 4 KV
Power supply surge protection: Line-GND: 4 KV
Power supply surge protection: Line-Line: 2 KV
Ethernet port ESD protection (air/contact): 15 KV/8 KV
Environmental Specifications
Operating:
– Temperature -20°C to 50°C/-4°F to 122°F
– Humidity 5% to 95% (non-condensing)
Storage:
– Temperature -40°C to 70°C/-40°F to 158°F
– Humidity 5% to 95% (non-condensing)
MTBF (hr): 2,021,885.87
Heat dissipation (BTU/hr): 245.52
Acoustic noise @ 25°C (dBA): 0 (Fanless)
