Descrizione

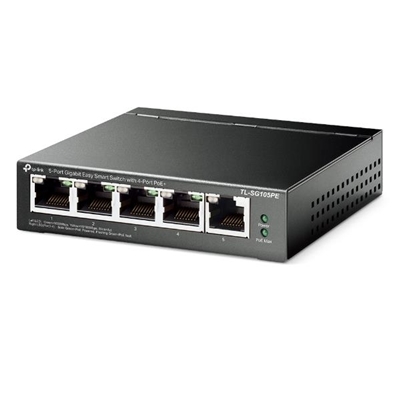

SWITCH 5P LAN GIGABIT TP-LINK TL-SG105PE CON 4P POE+ -GARANZIA A VITA
CARATTERISTICHE HARDWARE
Standard e protocolli: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interfaccia:
– Five 10/100/1000Mbps RJ45 Ports
– AUTO Negotiation/AUTO MDI/MDIX
Media:
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
– 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
– EIA/TIA-568 100Ω STP (maximum 100m)
Numero ventole: Fanless

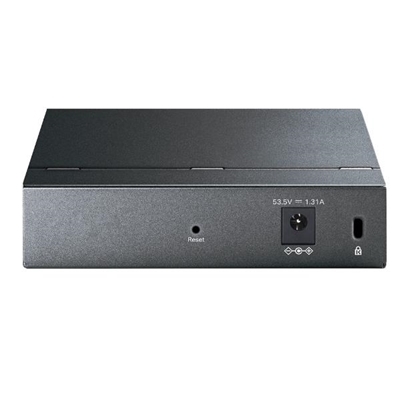

Alimentazione: External Power Adapter (Output: 53.5 VDC/1.31 A)

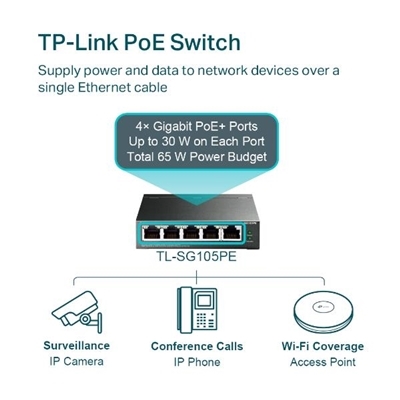

Porte PoE:
– Standard: 802.3 af/at compliant
– PoE Ports: Port 1- Port 4
– PoE Power Budget: 65 W
Dimensioni ( L x P x A ): 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Max Power Consumption:
– 4.52 W (220V/50Hz with no PD connected)
– 75.16 W (220V/50Hz with 65 W PD connected)
Max Heat Dissipation:
– 15.41 BTU/h (with no PD connected)
– 256.30 BTU/h (with 65 W PD connected)
PRESTAZIONI
Capacità di switching: 10 Gbps
Packet Forwarding Rate: 7.44 Mpps
Tabella ARP: 2 K
Buffer (pacchetti): 1.5 Mb
Jumbo frame: 16 KB
CARATTERISTICHE SOFTWARE
QoS (Quality of Service):
– Support Port-Based/802.1p/DSCP priority
– Support 4 priority queues
– Rate Limit
– Storm Control
Funzionalità L2:
– IGMP Snooping V1/V2/V3
– Static Link Aggregation
– Port Mirroring
– Cable Diagnostics
– Loop Prevention
– PoE Auto Recovery
– Extend Mode
VLAN:
– Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
– MTU/Port/Tag VLAN
Gestione:
– Web-based GUI
– Easy Smart Configuration Utility
Metodo di trasmissione: Store-And-Forward
ALTRO
Certificazione: FCC, CE, RoHS
Contenuto della confezione:
– TL-SG105PE
– Power Adapter
– Installation Guide
– Rubber Feet
Requisiti di sistema: Microsoft® Windows® for running Utility
Ambiente:
– Operating Temperature: 0℃~40℃ (32℉~104℉)
– Storage Temperature: -40℃~70℃ (-40℉~158℉)
– Operating Humidity: 10%~90%RH non-condensing
– Storage Humidity: 5%~95%RH non-condensing
