Descrizione

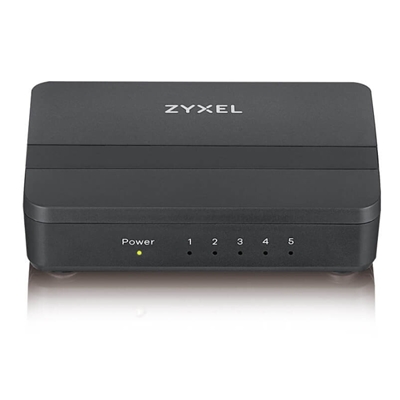

SWITCH 5P LAN GIGABIT ZYXEL GS-105S/ GS-105SV2-EU0101F FORMATO MINI – PLASTICA -GARANZIA 3 ANNI-
System Specifications
Standard:
– IEEE 802.3 10BASE-T Ethernet
– IEEE 802.3u 100BASE-TX Fast Ethernet
– IEEE 802.3ab 1000BASE-T Gigabit Ethernet
– IEEE 802.3 Nway auto-negotiation
– IEEE 802.3x full duplex operation and flow control
– IEEE 802.3az Energy Efficient Ethernet
Performance:
– Data transfer rate (half duplex/full duplex):
– Ethernet: 10/20 Mbps
– Fast Ethernet: 100/200 Mbps
– Gigabit Ethernet: 1000/2000 Mbps
– MAC address table: 2K
– Memory buffer: 128 KB
– Switching fabric (non-blocking): 10 Gbps
Features:
– Auto-MDI/MDIX in all ports
– Transmission method:
– Store-and-forward architecture
– Port-based Quality of Service (QoS) support
– Jumbo Frame support up to 9 KB
Hardware Specifications
Interface: 5x RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support
QoS Ports: 1x high-priority QoS port, 2x medium-priority QoS ports, and 2x low-priority QoS ports
LED Indicator:
– PWR: Power
– Per port: Link/Activity
– Amber: 10/100 Mbps
– Green: 1000 Mbps
Power supply:
– Input: 100V-240V AC
– Output: 5V DC, 1A
Power Consumption: 2.5 watt max.
Physical Specifications
Item dimensions (WxDxH): 99.1 x 67.6 x 28.6 mm (3.9″ x 2.7″ x 1.1″)
Item weight: 79g (0.17 lb.)
Packing dimensions (WxDxH): 103 x 82 x 92 mm (4.1″ x 3.2″ x 3.6″)
Packing weight: 221g (0.49 lb.)
Environmental Specifications
Operating Environment
– Temperature: 0°C to 40°C (32°F to 104°F)
– Humidity: 10% to 90% (Non-condensing)
Storage Environment
– Temperature: -40°C to 70°C (-40°F to 158°F)
– Humidity: 10% to 90% (Non-condensing)
Certification
EMC: CE, EAC, FCC, BSMI Class B
Package Contents
Gigabit switch
Power adapter
Quick Start Guide
