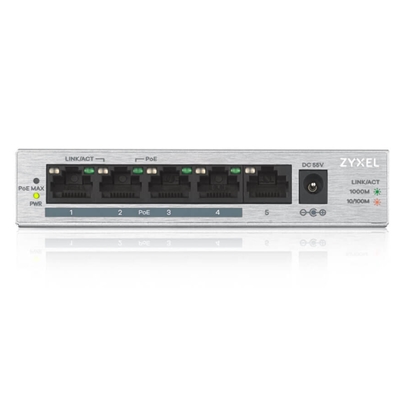

SWITCH 5P LAN GIGABIT ZYXEL GS1005HP-EU0101F UNMANAGED (4P POE, EROG. FINO 60W) METALLO, DESKTOP

Descrizione

SWITCH 5P LAN GIGABIT ZYXEL GS1005HP-EU0101F UNMANAGED (4P POE, EROG. FINO 60W) METALLO, DESKTOP

System Specifications
Standard:
– IEEE 802.3 10BASE-T Ethernet
– IEEE 802.3u 100BASE-TX Fast Ethernet
– IEEE 802.3ab 1000BASE-T Gigabit Ethernet
– IEEE 802.3 Nway auto-negotiation
– IEEE 802.3x full duplex operation and flow control
– IEEE 802.3az Energy Efficient Ethernet
Performance:
– Data transfer rate (half duplex/full duplex):
– Ethernet: 10/20 Mbps
– Fast Ethernet: 100/200 Mbps
– Gigabit Ethernet: 1000/2000 Mbps
– MAC address table: 2 K
– Memory buffer: 128 KB
– Switching fabric (non-blocking): 10 Gbps
Features:
– Compatible With IEEE 802.3af and 802.at Compliant PDs
– Auto-MDI/MDIX in all ports
– EEE802.3x Flow Control
– IEEE 802.1p QoS
– Jumbo frame support up to 9 KB

Hardware Specifications
Interface: 5x RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support
PoE Ports (RJ45):
– Standard: 802.3af and 802.3at compliant
– 4x PoE+ ports(Port1- Port4), up to 30W per port
– Total PoE Budget : 60W
LED Indicator:
– PWR: Power
– PoE MAX:
– Amber: PoE power output over 50W (total budget 60W)
– Per port: Link/Activity
– Amber: 10/100 Mbps
– Green: 1000 Mbps
– Port1- Port4: PoE+
– Green: PoE supported
Power Supply:
– AC-to-DC external power adapter
– Input: 100-240 V AC
– Output: 55V DC/1.3A

Physical Specifications
Item dimensions (WxDxH): 121 x 75 x 26 mm (4.76″x2.95″x1.02″)
Item weight: 235g (0.52 lb.)
Packing dimensions (WxDxH): 210 x 132 x 78 mm (8.27″x5.20″x3.07″)
Packing weight: 834g (1.84 lb.)

Environmental Specifications
Operating Environment:
– Temperature: 0°C to 40°C (32°F to 104°F)
– Humidity: 10% to 90% (Non-condensing)
Storage Environment:
– Temperature: -40°C to 70°C (-40°F to 158°F)
– Humidity: 10% to 90% (Non-condensing)

Certification
CE, FCC, BSMI, EAC

Package Contents
GbE Unmanaged PoE Switch
Power adapter
Quick Start Guide
