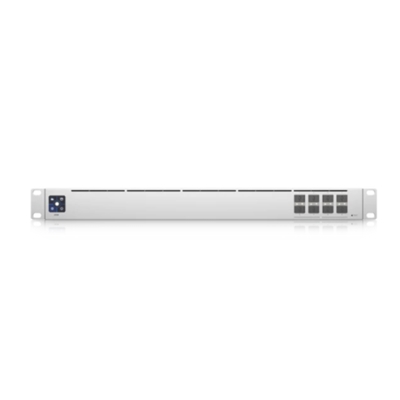

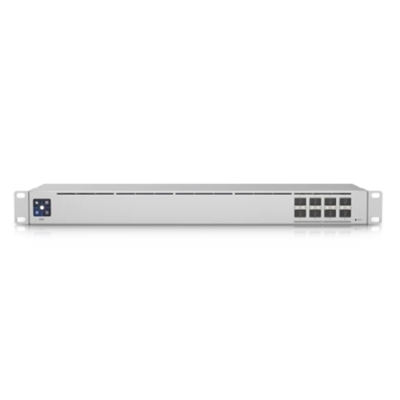

SWITCH 8P 10G SFP+ UBIQUITI USW-AGGREGATION – L2- 190GBIT/S – RACK 1U
Mechanical
Dimensions: 442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72″)
Weight:
– Without Mount: 2.65 kg (5.84 lb)
– With Mount: 2.74 kg (6.04 lb)
Enclosure Material: SGCC Steel
Hardware
Total Non-Blocking Throughput: 80 Gbps
Switching Capacity: 160 Gbps
Forwarding Rate: 119.04 Mpps
Max. Power Consumption: 30W
Power Method: Universal AC Input: 100-240VAC, 50/60 Hz
Power Supply: AC/DC, Internal, 36W
Management Interface: Ethernet In-Band
Modes: SMB Layer 2 Gigabit Ethernet Switch
Max. Number of Supported SFP+ Modules:
– UACC-OM-MM-10G: 8
– UACC-OM-SM-10G: 8
– UACC-CM-RJ45-10G: 4
ESD/EMP Protection: Air: ± 16kV, Contact: ± 12kV
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 10 – 90% Noncondensing
Certifications: CE, FCC, IC
LED
System:
– (1) Bootup Animation: Bootup in Progress
– Firmware Upgrade Icon: Firmware Upgrading
– Steady White: Factory Defaults, Awaiting Adoption
– Steady Blue: Device is Adopted
– SFP+: White: 10G, 1G
