Descrizione

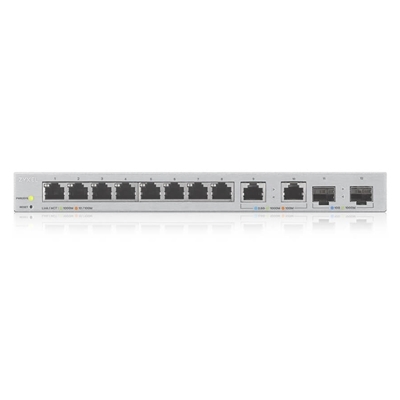

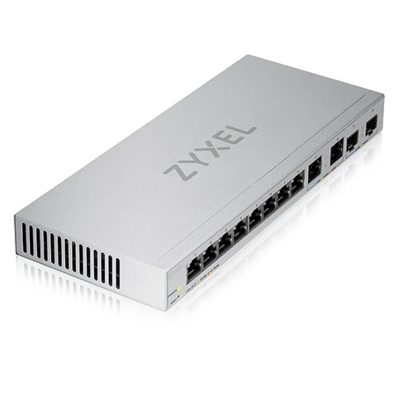

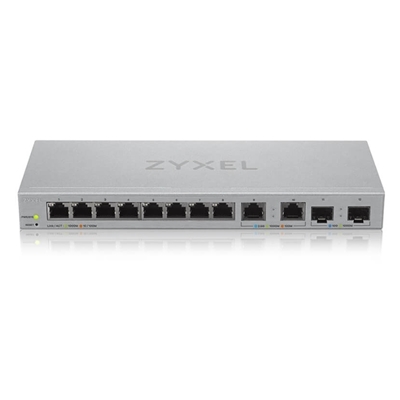

SWITCH 8P GIGABIT+2P 2.5GBE+2P SFP+ 10GBE ZYXEL XGS1210-12-ZZ0101F UNMANAGED -DESIGN NO VENTOLE, DESKTOP/RACK-EASY MA
System Specifications
Standard:
– IEEE 802.3 10BASE-TX Ethernet
– IEEE 802.3u 100BASE-TX Fast Ethernet
– IEEE802.3ab 1000BASE-T
– IEEE 802.3bz 2500BASE-T Gigabit Ethernet
– SFF-8431
– IEEE 802.3az Energy Efficient Ethernet
– IEEE 802.3x full duplex operation and flow control
Performance:
– Switching capacity: 66 Gbps
– Switching forwarding rate: 49 Mpps
– MAC address table: 16 K
– Packet buffer: 1.5 MB
– Jumbo frame support up to 12 KB
Features:
– Web-based management
– Auto-MDI/MDIX in all ports
– System password
– VLAN (Port supported)
– Port-based QoS
– 802.1p QoS
– Broadcast storm control
– Loop detection/prevention
– DHCP client
– Static Link aggregation
– Port mirroring
– Weighted Round Robin (WRR) priority QoS
– IGMP snooping v1/v2/and v3 compatible
– Supported multicast groups: 128
– Firmware update
Hardware Specifications
Interface:
– 8 x RJ-45 10/100/1000 Mbps Ethernet port with metal shielding
– 2 x RJ-45 100/1000/2500 Mbps Ethernet port with metal shielding
– 2 x SFP+
– Hardware reset button
LED Indicator:
– PWR: Power
– Port 1~8: Link/Activity, Green: 1000 Mbps, Amber: 10/100 Mbps
– Port 9~10: Link/Activity, Sky Blue : 2.5Gbps, Green : 1Gbps, Amber: 100Mbps
– Port 11~12: Link/Activity, Blue: 10Gbps, Green : 1000Mbps
Power Supply:
– AC-to-DC external power adapter
– Input: 100-240V~50-60Hz
– Output: 12V DC/1.5A
Physical Specifications
Item dimensions (WxDxH): 250 x 104 x 27mm(9.84” x 4.10” x 1.06”)
Item weight: 768g (1.69 lb.)
Packing dimensions (WxDxH): 306 x 225 x 64mm (12.04” x 8.86” x 1.06”)
Packing weight: 1217g (2.68 lb)
Environmental Specifications
Operating Environment:
– Temperature: 0°C to 40°C (32°F to 104°F)
– Humidity: 10% to 90% (Non-condensing)
Storage Environment:
– Temperature: -40°C to 70°C (-32°F to 158°F)
– Humidity: 10% to 90% (Non-condensing)
Certification
Safety: CE-LVD, BSMI
EMC: CE, FCC, EAC, BSMI, Class B
Package Contents
– Switch
– Power adapter
– Quick Start Guide
– Safety warning and DoC
