Descrizione

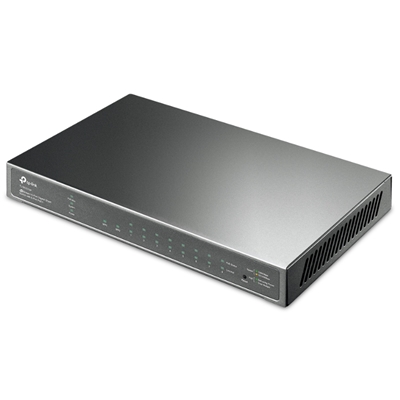

SWITCH 8P LAN GIGABIT TP-LINK SG2210P(T1500G-10PS) POE+ SMART RJ45 CON 2 SFP,802.3AF SFP – ALIM.53W POE-GARANZIA A VITA
CARATTERISTICHE HARDWARE
Standard e protocolli:
– IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
– IEEE 802.3ad, IEE 802.3af, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
– IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interfaccia:
– 8 10/100/1000Mbps RJ45 Ports
– 2 1000Mbps SFP Slots
(Auto-Negotiation/Auto MDI/MDIX)
Media:
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
– 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
– 1000BASE-X: MMF, SMF
Numero ventole: Fanless
Alimentazione:
– 100~240VAC, 50/60Hz
– External Power Adapter(Output: 48VDC/1.25A)
Consumo energetico:
– Maximum (PoE on): 63.4W (220V/50Hz)
– Maximum (PoE off): 10.4W (220V/50Hz)
Porte PoE:
– Standard: 802.3af compliant
– PoE Ports: 8 Ports
– Power Supply: 53W
Dimensioni ( L x P x A ): 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)
PRESTAZIONI
Bandwidth/Backplane: 20Gbps
Packet Forwarding Rate: 14.9Mpps
Tabella ARP: 8k
Buffer (pacchetti): 512KB
Jumbo frame: 9216 Bytes
CARATTERISTICHE SOFTWARE
QoS (Quality of Service):
– Support 802.1p CoS/DSCP priority
– Support 4 priority queues
– Queue scheduling: SP, WRR, SP+WRR
– Port/Flow- based Rate Limiting
– Voice VLAN
VLAN:
• VLAN Group
– Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN
ACL (Access Control List):
– L2～L4 package filtering based on source and destination
– MAC address, IP address, TCP/UDP ports, 802.1p,
– DSCP, protocol and VLAN ID
– Time Range Based
Sicurezza:
– SSH v1/v2
– SSL v2/v3/TLSv1
– Port Security
– Broadcast/Multicast/Unknown unicast Storm Control
– 802.1x and Radius Authentication、IP-Mac-Port-VID Binding、ARP Inspection、DHCP Snooping、DoS Defend
Caratteristiche di switching L3:
– IGMP Snooping V1/V2/V3
– 802.3ad LACP (Up to 6 aggregation groups,
– containing 4 ports per group)
– Spanning Tree STP/RSTP/MSTP
– BPDU Filtering/Guard
– TC/Root Protect
– Loop back detection
– 802.3x Flow Control
– LLDP(LLDP-MED)
Gestione:
– Web-based GUI and CLI management
– SNMP v1/v2c/v3, compatible with public MIBs and
– TP-LINK private MIBs
– RMON (1, 2, 3, 9 groups)
– CPU Monitoring
– Port Mirroring
– Time Setting: SNTP
– Firmware Upgrade: TFTP & Web
– System Diagnose: VCT
– SYSLOG & Public MIBS
ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
– TL-SG2210P
– Power Adapter
– Installation Guide
– Resource CD
– Rubber Feet
Requisiti di sistema: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Ambiente:
– Operating Temperature: 0℃~40℃ (32℉~104℉);
– Storage Temperature: -40℃~70℃ (-40℉~158℉)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
