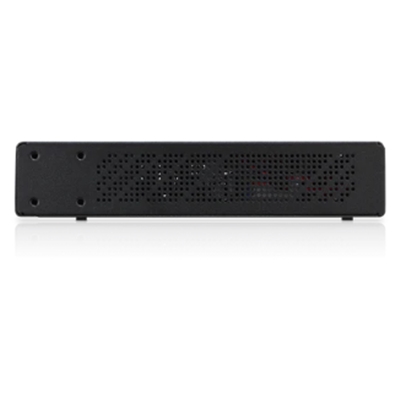

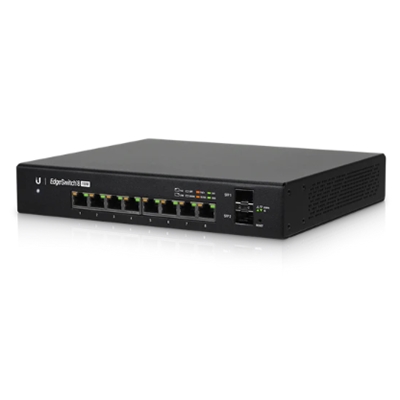

SWITCH 8P LAN GIGABIT UBIQUITI EDGESWITCH ES-8-150W 2P SFP 150W POE
Mechanical
Dimensions: 204 x 43 x 235 mm (8.03 x 1.69 x 9.25″)
Weight:
– Without Wall Mount: 1.72 kg (3.79 lb)
– With Wall Mount: 1.8 kg (3.96 lb)
Hardware
Networking Interface:
– (8) 10/100/1000 Mbps RJ45 Ports
– (2) 1 Gbps SFP Ports
Management Interface: Ethernet In-Band, UART Console Out-of-Band
PoE Interface:
– (8) PoE/PoE+ 2-Pair (+1, 2; -3, 6)
– (8) 24V/0.7A 2-Pair (+4, 5; -7, 8)
Total Non-Blocking Line Rate: 10 Gbps
Max. Power Consumption: 20W (Excludes PoE Output)
Power Method:
– AC: AC/DC Integrated PSU, Universal Input
– DC: DC External, (Self-Correcting Polarity Protection) Terminal Block Input
Power Supply: Internal AC/DC 150W
Operating Voltage:
– AC: 100 to 240VAC, 50-60 Hz
– DC: 42 to 56VDC
LEDs:
– System: Status
– RJ45 Data Ports: PoE; Link/Speed/Activity
– SFP Data Ports: Link/Speed/Activity
ESD/EMP Protection: ± 24kV Air, ± 24kV Contact
Operating Temperature:
– Internal AC/DC at 150W: -25 to 45° C (-13 to 113° F)
– Internal AC/DC at 100W: -25 to 55° C (-13 to 131° F)
– External DC: -25 to 60° C (-13 to 140° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
