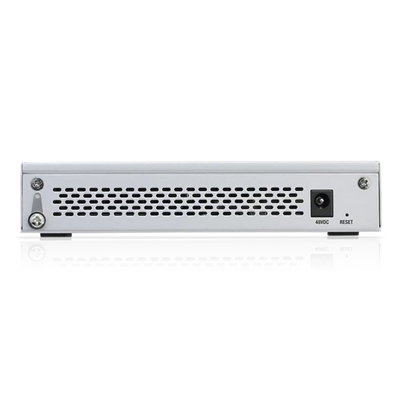

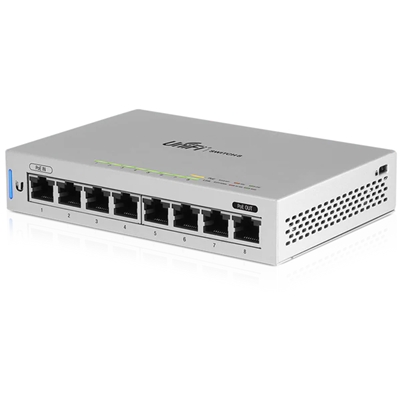

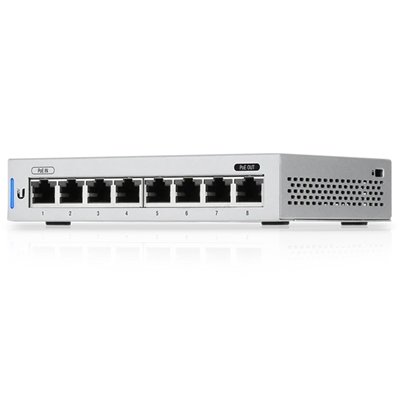

SWITCH 8P LAN GIGABIT UBIQUITI UNIFI US-8 – 1P POE PASSTHROUGH

Descrizione

SWITCH 8P LAN GIGABIT UBIQUITI UNIFI US-8 – 1P POE PASSTHROUGH

Dimensions
148 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21″)

Weight
432 g (15.24 oz)

Networking Interfaces
(8) 10/100/1000 Mbps RJ45 Ports

PoE In (Port 1)
PoE Mode 1: PoE/PoE+ (Pins 1, 2+; 3, 6-)
PoE Mode 2: Passive 48V (Pins 4, 5+; 7, 😎

PoE Out (Port 8)
PoE Mode 1: 48V (Pins 1, 2+; 3, 6-)
PoE Mode 2: Passive 48V (2-Pair Pins 4, 5+; 7, 😎
DC Input Mode: 48VDC (Pins 1, 2+; 3, 6-)

Power Method
(1) DC 48V, Max. 1.25A
(1) PoE Input, PoE/PoE+ (Pins 1, 2+; 3, 6-)

Power Supply
External AC/DC Adapter: 48V, 0.5A

Max. Power Consumption
12W (Excluding PoE Output)

Max. PoE Wattage per Port
PoE Mode 1: 12W @ PoE+
PoE Mode 2: 12W @ 48V
DC Input Mode: 12W @ 48V

Passive PoE Voltage Range
Depends on Power Source

Line Rate
8 Gbps, Non-Blocking

LEDs
System: Status
RJ45 Data Ports: PoE; Link/Speed/Activity

ESD/EMP Protection
± 24kV Air, ± 24kV Contact

Operating Temperature
-5 to 45° C (23 to 113° F)

Operating Humidity
5 to 95% Noncondensing

Certifications
CE, FCC, IC
