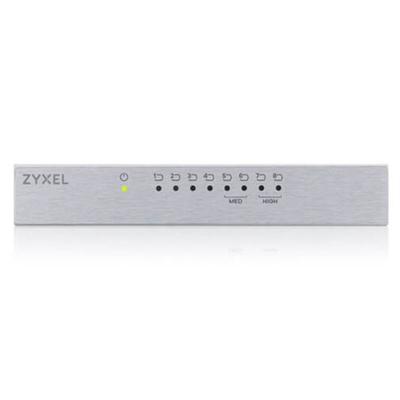

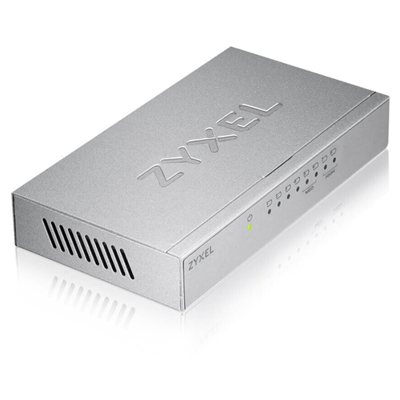

SWITCH 8P LAN GIGABIT ZYXEL GS-108BV3-EU0101F V3 AUTO MDI/MDI-X -GARANZIA 5 ANNI-

Descrizione

SWITCH 8P LAN GIGABIT ZYXEL GS-108BV3-EU0101F V3 AUTO MDI/MDI-X -GARANZIA 5 ANNI-

System Specifications
Standard:
– IEEE 802.3 10BASE-T Ethernet
– IEEE 802.3u 100BASE-TX Fast Ethernet
– IEEE 802.3ab 1000BASE-T Gigabit Ethernet
– IEEE 802.3 Nway auto-negotiation
– IEEE 802.3x full duplex operation and flow control
– IEEE 802.3az Energy Efficient Ethernet
Performance:
– Data transfer rate (half duplex/full duplex):
– Ethernet: 10/20 Mbps
– Fast Ethernet: 100/200 Mbps
– Gigabit Ethernet: 1000/2000 Mbps
– MAC address table: 4 K
– Memory buffer: 128 KB
– Switching fabric (non-blocking): 16 Gbps
Features:
– Auto-MDI/MDIX in all ports
– Transmission method: Store-and-forward architecture
– Port-based QoS support
– Jumbo frame support up to 9 KB

Hardware Specifications
Interface: 8x RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support
QoS Ports: 2x high-priority QoS ports and 2x medium-priority QoS ports
LED Indicator:
– PWR: Power
– Per port: Link/Activity
– Amber: 10/100 Mbps
– Green: 1000 Mbps
Power Supply:
– Input: 100-240 V AC
– Output: 5 V DC, 1 A
Power consumption: 3.0 watt max.

Physical Specifications
Item dimensions (WxDxH): 155 x 85 x 26 mm (6.1″ x 3.3″ x 1.0″)
Item weight: 325 g (0.72 lb.)
Packing dimensions (WxDxH): 161 x 90 x 95 mm (6.3″ x 3.5″ x 3.7″)
Packing weight: 493 g (1.09 lb.)

Environmental Specifications
Operating Environment:
– Temperature: 0°C to 40°C (32°F to 104°F)
– Humidity: 10% to 90% (Non-condensing)
Storage Environment:
– Temperature: -40°C to 70°C (-40°F to 158°F)
– Humidity: 10% to 95% (Non-condensing)

Certification
EMC: CE, EAC, FCC, BSMI Class B

Package Contents
Gigabit switch
Power adapter
Quick start guide
