Descrizione

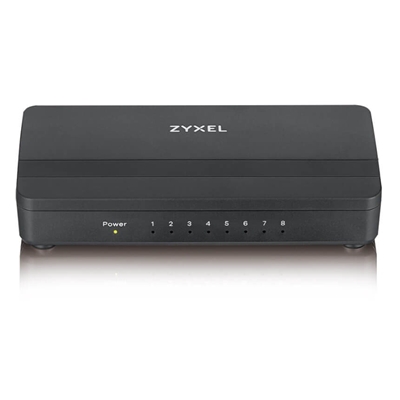

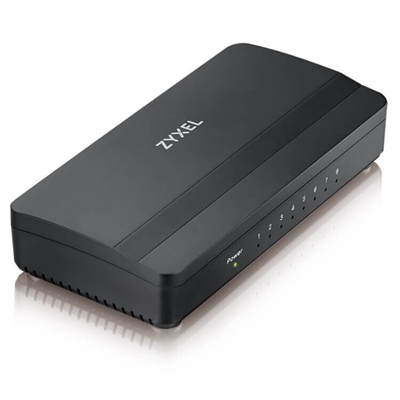

SWITCH 8P LAN GIGABIT ZYXEL GS-108SV2-EU0101F FORMATO MINI – PLASTICA -GARANZIA 3 ANNI-
System Specifications
Standard:
– IEEE 802.3 10BASE-T Ethernet
– IEEE 802.3u 100BASE-TX Fast Ethernet
– IEEE 802.3ab 1000BASE-T Gigabit Ethernet
– IEEE 802.3 Nway auto-negotiation
– IEEE 802.3x full duplex operation and flow control
– IEEE 802.3az Energy Efficient Ethernet
Performance:
– Data transfer rate (half duplex/full duplex):
– Ethernet: 10/20 Mbps
– Fast Ethernet: 100/200 Mbps
– Gigabit Ethernet: 1000/2000 Mbps
– MAC address table: 4K
– Memory buffer: 128 KB
– Switching fabric (non-blocking): 16 Gbps
Features:
– Auto-MDI/MDIX in all ports
– Transmission method:
– Store-and-forward architecture
– Port-based Quality of Service (QoS) support
– Jumbo Frame support up to 9 KB
Hardware Specifications
Interface: 8x RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support
QoS Ports: 2x high-priority QoS ports, 2x medium-priority QoS ports, and 4x low-priority QoS ports
LED Indicator:
– PWR: Power
– Per port: Link/Activity
– Amber: 10/100 Mbps
– Green: 1000 Mbps
Power supply:
– Input: 100V-240V AC
– Output: 5V DC, 1A
Power Consumption: 3.0 watt max.
Physical Specifications
Item dimensions (WxDxH): 138.1 x 67.6 x 28.6 mm (5.4″ x 2.7″ x 1.1″)
Item weight: 118g (0.26 lb.)
Packing dimensions (WxDxH): 142 x 83 x 92 mm (5.6″ x 3.3″ x 3.6″)
Packing weight: 275g (0.61 lb.)
Environmental Specifications
Operating Environment:
– Temperature: 0°C to 40°C (32°F to 104°F)
– Humidity: 10% to 90% (Non-condensing)
Storage Environment:
– Temperature: -40°C to 70°C (-40°F to 158°F)
– Humidity: 10% to 90% (Non-condensing)
Certification
EMC: CE, EAC, FCC, BSMI Class B
Package Contents
Gigabit switch
Power adapter
Quick Start Guide
