Descrizione

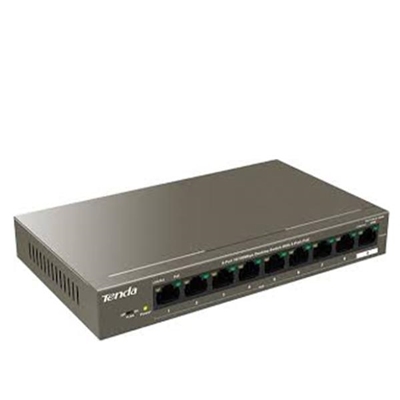

SWITCH 9P LAN 10/100M TENDA TEF1109P-8-102W DESKTOP -8P POE- METALLO – GARANZIA 3 ANNI
Standard & Protocol:
– IEEE 802.3 / IEEE 802.3u/IEEE 802,3x
– IEEE 8023af/IEEE 802.3at
Indicator:
– 9*Link/Act device
– 1*Power per device
Interface:
– 8 10/100Base-T ports(Data/Power)
– 1 10/100Base-T ports(Data)
Port Lightning Protection: 6KV for uplink port
Store and forward: Yes
Exchange Capacity: 1.8 Gbps
Packet forwarding rate: 1.34Mpps
Packet buffer: 1 Mb
MAC Address Table: 2K
POE supply: Port 1-8 support IEEE802.3at/af PoE standard
POE through pin: 1 2 4 5+ ; 3 6 7 8 –
Voltage input range: AC: 100-240V 50/60Hz
Dimensions ( W x D x H ): 177.5 * 104 * 16mm
Power Consumption:
– In full configuration: 102W
– PoE Max Power Supply: 92W
Port Features:
– Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other
– VLAN: ports 1 to 8 are isolated from each Other, but can communicate with ports 9 (uplink port) respectively. Which also support 250m long distance transmission.
Environment:
Operating Temperature: 0~40 (32-104 )
Storage Temperature: -40~70 (-40 —158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
