SWITCH MANAGED L2+ 2 PORTE 10GE SFP+ E 4 PORTE 10GE POE++TP-LINK TL-SX3206HPP

Descrizione

SWITCH MANAGED L2+ 2 PORTE 10GE SFP+ E 4 PORTE 10GE POE++TP-LINK TL-SX3206HPP

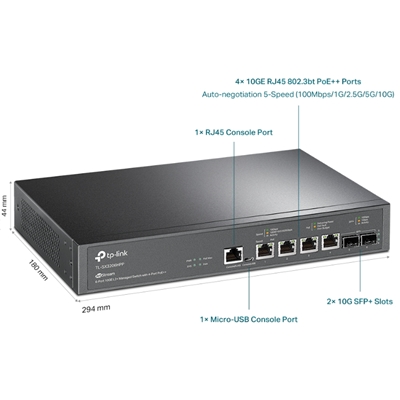

CARATTERISTICHE HARDWARE
Interfaccia:
• 4× 100/1000/2500/5000/10000 Mbps RJ45 Ports
• 2× 10G SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Numero ventole: 2
Alimentazione: 100-240 V AC~50/60 Hz
Porte PoE:
• Standard: 802.3bt/at/af compliant
• PoE+ Ports: 4 Ports, up to 60 W per port
• Power Budget: 200 W
Dimensioni ( L x P x A ): 11.6 × 7.1 × 1.7 in (294× 180 × 44 mm)
Tipo di montaggio:
• Rack Mountable
• Desktop
Max Power Consumption:
• 27.29 W (110V/60Hz) (no PD connected)
• 244.90 W (110V/60Hz) (with 200 W PD connected)
Max Heat Dissipation:
• 93.12 BTU/h (110 V/60 Hz) (no PD connected)
• 835.67 BTU/h (110 V/60 Hz) (with 200 W PD connected)

PRESTAZIONI
Capacità di switching: 120 Gbps
Packet Forwarding Rate: 89.28 Mpps
Tabella ARP: 32 K
Jumbo frame: 9 KB

GESTIONE
Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features:
• Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3
– Trap/Inform
– RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
• TL-SX3206HPP Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
Requisiti di sistema: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Ambiente:
• Operating Temperature: 0–50 ℃ (32–122 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
