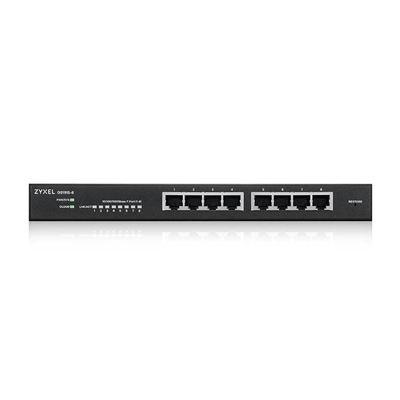

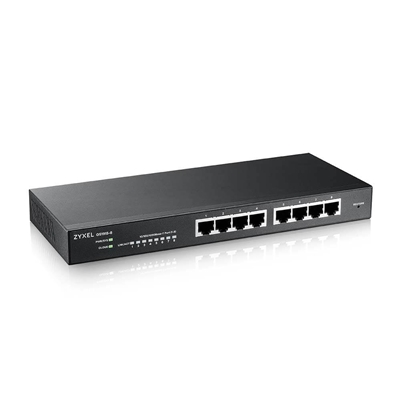

SWITCH ZYXEL GS1915-8-EU0101F 8P GIGA-NEBULAFLEX – SUPPORTO IPV6, VLAN – DESIGN SENZA VENTOLE, DESKTOP

Descrizione

SWITCH ZYXEL GS1915-8-EU0101F 8P GIGA-NEBULAFLEX – SUPPORTO IPV6, VLAN – DESIGN SENZA VENTOLE, DESKTOP

Model
Product name: 8-port GbE Smart Managed Switch

Port Density
Total port count: 8
100/1000 Mbps: 8

Performance
Switching capacity (Gbps): 16
Forwarding rate (Mpps): 11.9
Packet buffer (byte): 525 K
MAC address table: 8 K
Jumbo frame (byte): 9 K

Power
Input: 100 – 240 V AC, 50/60 Hz
Max. power consumption (watt): 4.7

Physical Specifications
Item:
– Dimensions (WxDxH): 250 x 104 x 27 mm
Weight: 0.62 kg
Included accessories: Power adapter, Wall mount kit

Environmental Specifications
Operating:
– Temperature: 0°C to 40°C/32°F to 104°F
– Humidity:  10% to 95% (non-condensing)
Storage:
– Temperature: -40°C to 70°C/-40°F to 158°F
– Humidity 10% to 95% (non-condensing)
MTBF (hr): 1,144,461
Heat dissipation (BTU/hr): 16.03
Acoustic noise @ 25°C (dBA): 0

Standard Compliance
– IEEE 802.3 10BASE-T Ethernet*
– IEEE 802.3u 100BASE-TX Ethernet*
– IEEE 802.3ab 1000BASE-T Ethernet*
– IEEE 802.3x flow control
– IEEE 802.3af PoE*
– IEEE 802.3at PoE+*
– IEEE 802.3az EEE support/Green Ethernet
– IEEE 802.1p CoS support*
* Cloud and standalone modes supported features

Resilience and Availability
– IEEE 802.1D Spanning Tree Protocol (STP)*
– IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
– IEEE 802.3ad LACP* (max # trunks/links per trunk): 4 groups/8 links per group
– Loop guard*
– Dual configuration files
– Dual images*
* Cloud and standalone modes supported features

Traffic Control
– 802.1Q Static VLANs: 256*
– Port-based VLAN
– Voice VLAN*
– MAC-based VLAN
– Vendor ID based VLAN*
– VLAN Trunking*
– LACP algorithm of source/destination IP
* Cloud and standalone modes supported features

Security
– Layer 2 MAC filtering
– Static MAC forwarding
– SSH v2
– SSL
– Port isolation*
– Port security
– MAC freeze
– CPU protection
– SHA2 HTTPS Certification
– Login authentication by RADIUS
– RADIUS accounting
– Authorization on RADIUS
– Multiple RADIUS servers
– DHCP Snooping
* Cloud and standalone modes supported features

Quality of Service (QoS)
– 802.1p queuing methods: SPQ, WRR, WFQ
– Storm control: broadcast, multicast, unknown unicast (DLF)*
– Port-based rate limiting (ingress/ egress)*
– 802.3x flow control
– 802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable)
– DiffServ (DSCP)
* Cloud and standalone modes supported features

Layer 2 Multicast
– L2 Multicast*
– Static L2 Multicast Forwarding
– IGMP snooping (v1, v2, v3)*
* Cloud and standalone modes supported features

Manageability
– SNMP v1*, v2c*, v3
– SNMP trap group
– RMON (1, 2, 3, 9)
– ICMP echo/echo reply
– Syslog*
– Display port utilization*
– IEEE 802.1AB LLDP
– IEEE 802.1AB LLDP-MED
– Custom default
– Support NebulaFlex for Cloud Management
* Cloud and standalone modes supported features

IPv6 Management
– IPv6 over Ethernet (RFC 2464)
– IPv6 addressing architecture (RFC 4291)
– Dual stack (RFC4213)
– ICMPv6 (RFC4884)
– Path MTU (RFC 1981)
– Minimum Path MTU size of 1280 (RFC 5905)
– Encapsulation for maximum PMTU size of 1500
– Neighbor Discovery (RFC4861)

Device Management
– Standalone management by Web interface
– Cloud management by Nebula Control Center*
– Setup Wizard
– Management through Web, SNMP
– Remote firmware upgrade by FTP/Web
– Configuration saving and retrieving
– DHCP client*
– DHCP relay per VLAN
– Daylight saving*
– NTP (IPv4/IPv6)
– Port mirroring*
– Schedule PoE*
– PoE default consumption mode*
* Cloud and standalone modes supported features

MIB
– Zyxel private common MIB
– RFC 1066 TCP/IP-based MIB
– RFC 1213, 1157 SNMPv2c/v3 MIB
– RFC 1493 bridge MIB
– RFC 1643 Ethernet MIB
– RFC 1757 RMON group 1, 2, 3, 9
– RFC 2011, 2012, 2013 SNMPv2 MIB
– RFC 2233 SMIv2 MIB
– RFC 2358 Ethernet-like MIB
– RFC 2674 bridge MIB extension
– RFC 2819, 2925 Remote Management MIB
– RFC 3621 Power Ethernet MIB
– RFC 4293 Management Information Base (MIB) for IP
– RFC 4292 IP forwarding table MIB
– RFC 4022 management information base for transmission control protocol
– RFC 4113 management information base for user datagram protocol

Zyxel One Network
ZON Utility:
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations:
– IP configuration
– IP renew
– Device factory reset
– Device reboot
– Device locating
– Web GUI access
– Password configuration
– One-click quick association with Zyxel AP Configurator (ZAC)
Automatic detection of the latest firmware
Displays device serial number and hardware version
Cloud mode on/off option for Hybrid series devices
* Cloud and standalone modes supported features

Smart Connect:
Discover neighboring devices
One-click remote management access to the neighboring Zyxel devices
Reset neighboring devices remotely to factory defaults
Power cycle neighboring powered devices (PoE switches only)

Certifications
EMC:
– CE, FCC, RCM, Class A
– BSMI CNS 13438
Safety:
– LVD LVD EN 62368-1
– BSMI CNS 14336-1
RoHS

Limited life-time warranty
– Warranty terms, service availability, and service response times may vary from country or region to country or region.
