Descrizione

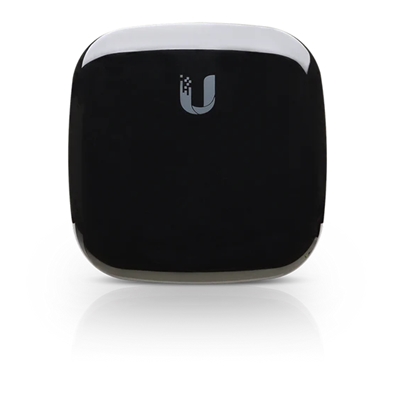

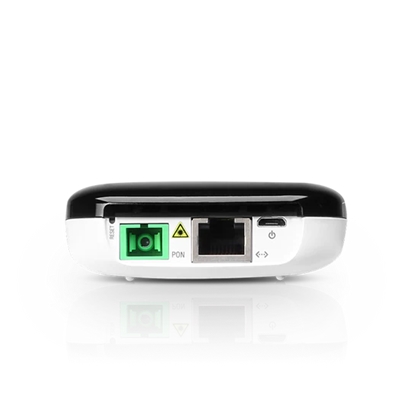

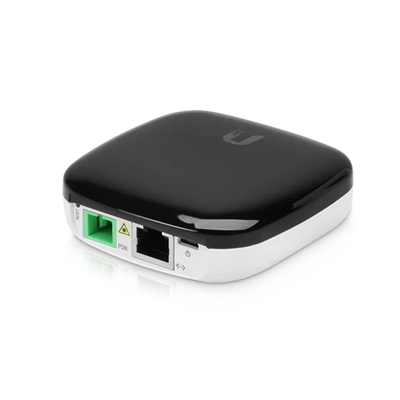

UNIFI LOCO GPON UBIQUITI UF-LOCO-20 1GBPS- INDICATORI LED (20 PACK) NO POWER ADAPTER
Mechanical
Dimensions: 76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 1.04″)
Weight: 77 g (2.72 oz)
Hardware
Networking Interfaces:
– (1) SC/APC, GPON WAN
– (1) RJ45, Ethernet LAN
Networking Interface Speeds:
– (1) GPON WAN, ITU G.984: 2.488 Gbps Downstream / 1.244 Gbps Upstream
– (1) GbE LAN: 10/100/1000 Mbps
Management Interface:
– In-Band Ethernet
– PON
Normal Optical Power Range:
– TX (Class B+): 1.5 to 5 dBm
– RX: -28 to -8 dBm
Power Method: Micro-USB 5V, 1A, 24V Passive PoE (Pins +4, 5; -7, 8)
Power Supply: Micro-USB Power Adapter: 5V, 1A
Max. Power Consumption: 3.5W
Supported Voltage Range: 4.7 to 5.3V
Processor Specs: MIPS-32, 240 MHz
Memory Information: 128 MB DDR3
Button: (1) Reset
Operating Temperature: -10 to 45° C (14 to 113° F)
Operating Humidity: 10 to 90% Noncondensing
Certifications: CE, FCC, IC
