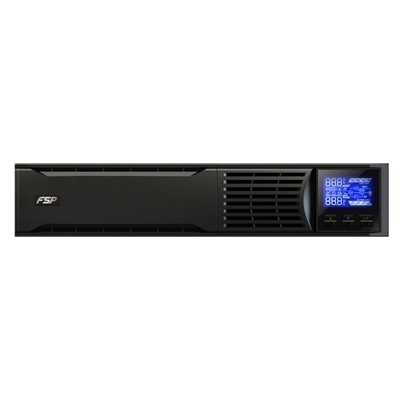

UPS FSP FORTRON CHAMP 1K RACK 1000VA/900W ONLINE PURE SINEWAVE LCD CONVERTER/ECO MODE SNMP USB RS-232 2*12V/9AH 3*SCHUKO

Descrizione

UPS FSP FORTRON CHAMP 1K RACK 1000VA/900W ONLINE PURE SINEWAVE LCD CONVERTER/ECO MODE SNMP USB RS-232 2*12V/9AH 3*SCHUKO

SPECIFICHE TECNICHE:

True double-conversion, Microprocessor control optimizes reliability, Input power factor correction, Output power factor 0.9, Wide input voltage (110V – 300V), Converter mode available, ECO mode for energy saving, Adjustable charging current via LCD or software (1A~6A), Generator compatible, Smart SNMP works well with either USB or RS-233 together, Comprehensive LCD display allows easy monitoring and access of UPS status

Compatibilità certificata con i prodotti SYNOLOGY! Griglia consultabile a questo link: Compatibility List – Synology Inc.

• CAPACITY: 1000VA / 900W, Single phase with ground
• INPUT – Nominal Voltage: 110 / 115 / 120 / 127Vac or 208 / 220 / 230 / 240Vac
• INPUT – Voltage Range: 60-145Vac or 120-300Vac at 50% load, 90-145Vac or 180-300Vac at 100% load
• INPUT – Frequency Range: 40~70Hz
• INPUT – Power Factor: ≧ 0.99 @ Nominal Voltage (100% load)
• OUTPUT – Output Voltage: 110 / 115 / 120 / 127Vac or 208 / 220 / 230 / 240Vac
• OUTPUT – Voltage Regulation: ±1%
• OUTPUT – Frequency Range (Synchronized Range): 47~53Hz or 57~63Hz
• OUTPUT – Frequency Range (Batt. Mode): 50Hz ± 0.25Hz or 60Hz ± 0.3Hz
• OUTPUT – Inverter Crest Ratio: 3:1
• OUTPUT – Harmonic Distortion: ≦ 3% THD (Linear Load), ≦ 6% THD (Non-linear Load)
• OUTPUT – Transfer Time, AC Mode to Battery Mode: Zero
• OUTPUT – Transfer Time, Inverter to Bypass: 4 ms (Typical)
• OUTPUT – Waveform (Batt. Mode): Pure Sinewave
• EFFICIENCY – AC Mode: 88%
• EFFICIENCY – Battery Mode: 83%
• BATTERY – Type & Number: 12V / 9 Ah
• BATTERY – Numbers in string: 2
• BATTERY – Typical Recharge Time: 4 hours recover to 90% capacity
• BATTERY – Charging Current (max.): 1.0 A
• BATTERY – Charging Voltage: 27.4Vdc ± 1%
• INDICATORS – LCD Panel: Load level, Battery level, AC mode, Battery mode, Bypass mode and Fault indicators
• ALARM – Battery mode: Beeps every 4 seconds
• ALARM – Low Battery: Beeps every second
• ALARM – Overload: Beeps twice every second
• ALARM – Fault: Continuously beeping
• PHYSICAL – Dimension, D X W X H (mm): 310 x 438 x 88
• PHYSICAL – Net Weight (kgs): 12
• ENVIRONMENT – Humidity: 20-90% RH @ 0-40°C (non-condensing)
• ENVIRONMENT – Noise Level: Less than 50dBA @ 1 Meter
• OUTPUT SOCKETS: USB RS-232 3*SCHUKO
