Descrizione
UPS TECNOWARE ERA PLUS DC -FGCERAPLDC252 18W (WIFI ROUTER SWITCH CAM) 5/9/12V +10 CONN +USBCHARG 5V +LAN POE 24/48V AUT. 240MIN
General
Code: FGCERAPLDC252
Nominal Power: 25 W Max
Technology: Switching with Lithium-ion Batteries
Cooling: Natural
Audible noise: <40 dBA at 1m
Input connections: 2 PIN Italy plug AC Input cable

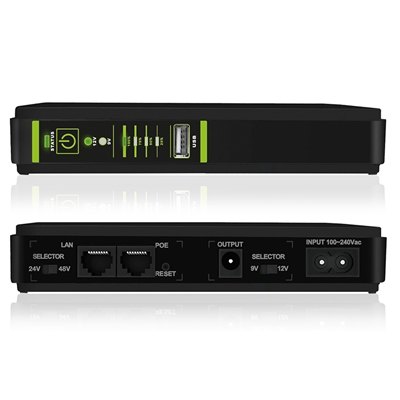

Output connections:
– DC 5.5×2.5 mm
– RJ45
– USB
Dimension (UPS) WxHxD: 16×2,8×10,5cm
Dimension (with packing) WxHxD: 17×3,5x14xcm
Weight: 0.5 Kg
Included:
– AC Input cable
– DC output cable with 5,5×2,5 mm 2 connectors
– 8 connectors
Input
Nominal voltage: Single-phase 230Vac
Input voltage range: 110-240Vac
Nominal frequency: 50/60 Hz
Output
POE ports: 24Vdc / 48Vdc (selectable) 0.6A max, + Pin 4/5, -Pin 7/8
USB port: 5Vdc -1A max
DC Output: 9Vdc / 12Vdc (selectable) 1A max
Overload capability: <130%
Transfer time: 0 ms
Battery
Type: Lithium Polymer transportable by plane (33Wh)
Backup time (typical): 240 min
Environmental specification
Working temperature: From 0 to 55 °C (recommended from 20 to 25 °C)
Humidity: < 95% without condensation
Maximum altitude: 3000 m
IP protection: IP20
Certifications: CE
