Descrizione

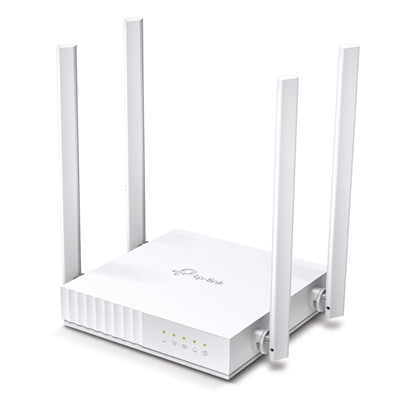

WIRELESS AC750 ROUTER DUAL BAND TP-LINK ARCHER C24 5GHZX433MBPS/2.4GHZX300MBPS 1P×10/100M WAN,4P ×10/100M
WIRELESS
Standards: Wi-Fi 5
– IEEE 802.11ac/n/a 5 GHz
– IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds: AC750
– 5 GHz: 433 Mbps (802.11ac)
– 2.4 GHz: 300 Mbps (802.11n)
WiFi Range: 2 Bedroom Houses
– 4× Fixed Antennas
– Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity: Medium
– Dual-Band
– Allocate devices to different bands for optimal performance
Working Modes:
– Router Mode
– Access Point Mode
– Range Extender Mode
HARDWARE
Processor: Single-Core CPU

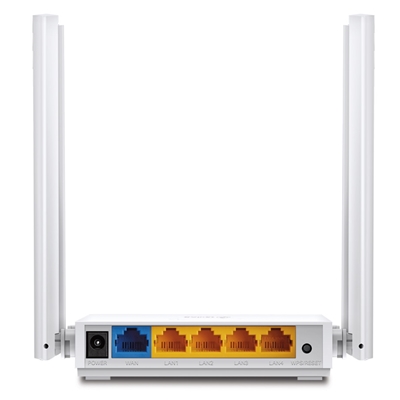

Ethernet Ports:
– 1× 10/100 Mbps WAN Port
– 4× 10/100 Mbps LAN Ports
Buttons: WPS/Reset Button
Power: 9 V ⎓ 0.6 A
SICUREZZA
WiFi Encryption:
– WEP
– WPA
– WPA2
– WPA/WPA2-Enterprise (802.1x)
Network Security:
– SPI Firewall
– Access Control
– IP & MAC Binding
– Application Layer Gateway
Guest Network:
– 1× 5 GHz Guest Network
– 1× 2.4 GHz Guest Network
SOFTWARE
Protocols: IPv4, IPv6
Parental Controls:
– URL Filtering
– Time Controls
WAN Types:
– Dynamic IP
– Static IP
– PPPoE
– PPTP
– L2TP
Quality of Service: QoS by Device
NAT Forwarding:
– Port Forwarding
– Port Triggering
– DMZ
– UPnP
IPTV:
– IGMP Proxy
– IGMP Snooping
– Bridge
– Tag VLAN
DHCP:
– Address Reservation
– DHCP Client List
– Server
DDNS:
– NO-IP
– DynDNS
Management:
– Tether App
– Webpage
OTHER
System Requirements:
– Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
– Cable or DSL Modem (if needed)
– Subscription with an internet service provider (for internet access)
Certifications: FCC, CE, RoHS
Environment:
– Operating Temperature: 0℃~40℃ (32℉ ~104℉)
– Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power:
– CE:
– <20dBm(2.4GHz)
– <23dBm(5GHz)
WiFi Reception Sensitivity:
– 5GHz:
– 11a 54M: -76dBm;
– 11ac VHT20 MCS8: -71dBm;
– 11ac VHT40 MCS9: -66dBm;
– 11ac VHT80 MCS9: -62dBm
– 2.4GHz:
– 11g 54M: -76dBm;
– 11n HT20 MCS7: -73dBm;
– 11n HT40 MCS7: -71dBm
PHYSICAL
Dimensions (W×D×H): 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm)
Package Contents:
– Wi-Fi Router Archer C24
– Power Adapter
– RJ45 Ethernet Cable
– Quick Installation Guide
