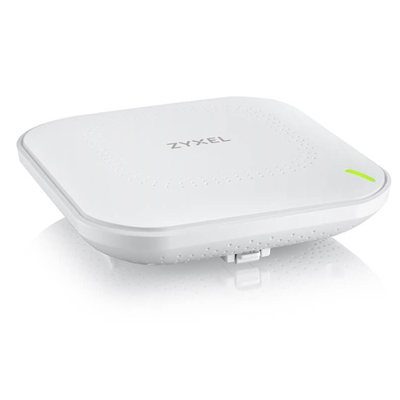

WIRELESS ACCESS POINT DUAL RADIO ZYXEL NWA1123ACV3-EU0102F NEBULAFLEX 1200MBPS-1P GIGA,SUPP.POE ANT.INT.-FORM.SMOKE FINO:31/12

Descrizione

WIRELESS ACCESS POINT DUAL RADIO ZYXEL NWA1123ACV3-EU0102F NEBULAFLEX 1200MBPS-1P GIGA,SUPP.POE ANT.INT.-FORM.SMOKE

Wireless
Standard: IEEE802.11 ac/n/g/b/a
MIMO: MU-MIMO
Wireless speed:
– 2.4 GHz: 300Mbps
– 5 GHz: 866Mbps
Frequency band:
2.4 GHz:
– USA (FCC): 2.412 to 2.462 GHz
– Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
– USA (FCC): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz
– European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth: 20-, 40- and 80-MHz
Conducted typical transmit output power:
– US (2.4GHz/5GHz): 23/23dBm
– EU (2.4GHz/5GHz): 19/23dBm

RF Design
Antenna type: 2×2 MIMO Embedded Antenna
Antenna gain:
– 2.4GHz: 3 dBi
– 5GHz: 4 dBi
Minimum receive sensitivity: Up to -99 dBm

WLAN feature
Band Steering: Yes
WDS/Mesh: Yes
Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
DCS: Yes
Load balancing: Yes

Security
Encryption:
– WEP
– WPA
– WPA2-PSK
– WPA3
Authentication:
– WPA
– WPA2-Enterprise
– EAP
– IEEE 802.1X
– RADIUS authentication
Access management:
– L2-isolation
– MAC filtering

Networking
IPv6: Yes
VLANs: Yes
WMM: Yes
U-APSD: Yes
DiffServ marking: Yes

Management
Operating mode:
– Cloud managed
– standalone
ZON Utility:
– Discovery of Zyxel switches, APs and gateways
– Centralized and batch configurations
– IP configuration
– IP renew
– Device reboot
– Device locating
– Web GUI access
– Firmware upgrade
– Password configuration
Zyxel Wireless Optimizer:
– WiFi AP planning
– WiFi coverage detection
– Wireless health management
Web UI/ CLI: Yes
SNMP: Yes

Physical Specifications
Item:
– Dimensions (WxDxH)(mm/in.): 140 x 140 x 37.5 /5.51 x 5.51 x 1.48
– Weight (g/lb.): 249/0.55
Packing:
– Dimensions (WxDxH)(mm/in.): 240 x 155 x 60 / 9.45 x 6.10 x 2.36
– Weight (g/lb.): 560/1.23
Included accessories: Power adapter, Ceiling-mount plate
MTBF(hr): 630,794

Physical Interfaces
Ethernet port: 1x 10/100/1000M LAN
Power:
– Input: AC 100 – 240V – 50/60 Hz 0.3A; Output: DC +12V 1A
– PoE (802.3af): power draw 11 W

Environmental Specifications
Operating:
– Temperature: 0°C to 50°C/32°F to 122°F
– Humidity: 10% to 90% (non-condensing)
Storage:
– Temperature: -40°C to 70°C/-40°F to 158°F
– Humidity: 10% to 90% (non-condensing)

Certifications
Radio:
– FCC Part 15C
– FCC Part 15E
– ETSI EN 300 328
– EN 301 893
– LP0002
– EN 60601-1-2
EMC:
– FCC Part 15B
– EN 301 489-1
– EN 301 489-17
– EN55022
– EN55024
– EN61000-3-2/-3
– BSMI CNS13438
Safety:
– EN 60950-1
– IEC 60950-1
– BSMI CNS14336-1
