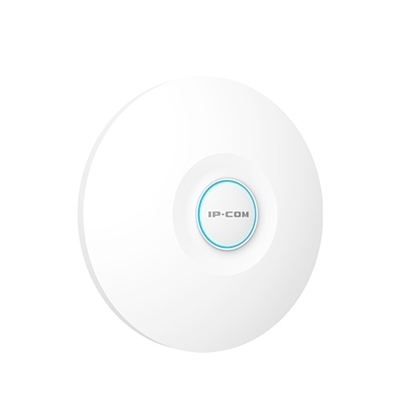

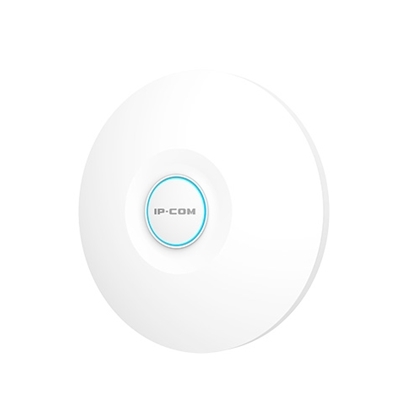

WIRELESS ACCESS POINT IP-COM PRO-6-LR DUAL BAND FINO A 3000MBPS 802.11AX WI-FI 6 2X2 MIMO

Descrizione

WIRELESS ACCESS POINT IP-COM PRO-6-LR DUAL BAND FINO A 3000MBPS 802.11AX WI-FI 6 2X2 MIMO

– Up to 3000 Mbps dual-band data rate
– The new WPA3 encryption mode safeguards your network security
– 2.4 GHz band 2×2 MIMO with a radio rate of 574 Mbps
– 5 GHz band 2×2 MIMO with a radio rate of 2402 Mbps
– Power input with 802.3at PoE

Product Information
Per abilitare il segnale ad alta potenza, scaricare e installare il firmware V1.0.0.19(2528) che abilita anche la piattaforma IMS, oppure il firmware V1.0.0.14 (senza abilitazione della piattaforma IMS)
Model: Pro 6 LR
Category: Ceiling
Dimensions: Φ250.6*55 mm

Hardware Specifications
Frequency band: 2.4 GHz, 5 GHz
Wireless standards: IEEE 802.11a/b/g/n/ac/ax
2.4 GHz data rate: 1-574 Mbps
5 GHz data rate: 6-2402 Mbps
Channel width: 20 MHz/40 MHz/80 MHz/160 MHz
MU-MIMO: 2X2 MU-MIMO
Ethernet port:
– One 10/100/1000 Mbps Ethernet Port
– One 10/100/1000 Mbps Ethernet Port (PoE)
Button: 1*Reset
LED indicator: RGB
Max. power consumption: 15.74 W
Power supply standard: IEEE 802.3at PoE
Concurrent clients: 254
Antenna gain: 4*4 dBi
2.4 GHz Max. output power: 29+/-1.5 dBm
5 GHz Max. output power: 29+/-1.5 dBm
802.11b RX sensitivity: -97 dBm
2.4 GHz 802.11n (MCS7) RX sensitivity: -75 dBm
5 GHz 802.11a RX sensitivity: -95 dBm
5 GHz 802.11n (MCS7) RX sensitivity: -75 dBm

Software Specifications
Operating mode: AP
Hide SSID: Supported
Max. No. of SSID: 2.4 GHz: 7 5 GHz: 4
OFDMA: Supported
Beamforming: Supported
TWT: Supported
802.11 k/v: Supported
WEP: Supported
WPA-PSK: AES/TKIP
WPA2-PSK: AES/TKIP
WPA3-ASE: AES
WPA: Supported
WPA2: Supported
Access control: MAC address-based
Adjustable power transmit: Supported
Frequency analysis: Supported
AP isolation: Supported
Connected clients control: Supported
RSSI threshold: Supported
VLAN tagging for SSID: Supported
LED indicator control: Supported
Diagnostics tool: Ping, Traceroute
Scheduled reboot: Supported
Reboot at specified interval: Supported
System logs: Supported
Firmware upgrade: Supported
Reboot: Supported
Reset: Supported
Backup configuration: Supported
Restore configuration: Supported

Operating Environment
Default login IP address: 192.168.0.254
Default user name: admin
Default password: admin
Operating temperature: -10℃ – 45℃
Operating humidity: (10% – 90%) RH, non-condensing
Storage temperature: -30℃ – 70℃
Storage humidity: (10% – 90%) RH, non-condensing

Package contents
The package contents of all models are listed here. The actual contents may vary by model.
– AP x 1
– Mounting Bracket (on the AP) x 1
– Power Cord x 1 or Power Adapter x 1
– PoE Injector x 1
– Plastic Anchor (Length: 26.4 mm; Diameter: 2,4 mm) x 3
– Plastic Nut (Length: 14.5 mm; Diameter: 2.51 mm) x 3
– Screw (BA3.0 * 25 mm) x 3
– Quick Installation Guide x 1
