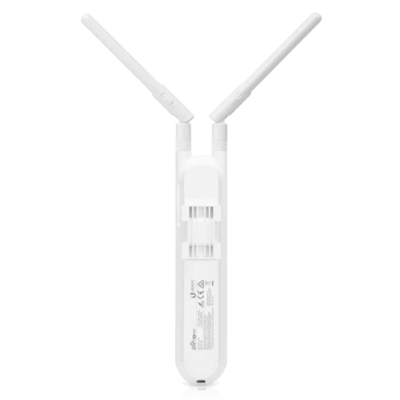

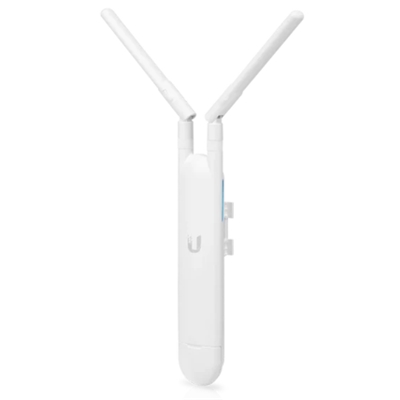

WIRELESS ACCESS POINT MESH UBIQUITI UNIFI UAP-AC-M OUTDOOR/INDOOR DUALBAND 2.4GHZ/300M 5GHZ/867M MIMO2X2 802.11A/B/G/N/AC

Descrizione

WIRELESS ACCESS POINT MESH UBIQUITI UNIFI UAP-AC-M OUTDOOR/INDOOR DUALBAND 2.4GHZ/300M 5GHZ/867M MIMO2X2 802.11A/B/G/N/AC

Mechanical
Dimensions: 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35″)
Weight: With Antennas: 152 g (5.36 oz)

Hardware
Networking Interface: (1) 10/100/1000 Ethernet Port
Button: Reset
Antennas: (2) Dual-Band Antennas
Power Method:
– 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
– PoE Alternative A (Pairs 1, 2+; 3, 6 Return)
Power Supply: 24V, 0.5A Gigabit PoE Adapter
Supported Voltage Range: 44 to 57VDC
Maximum Power Consumption: 8.5W
Max. TX Power: 20 dBm
Mounting: Wall/Pole/Fast-Mount (Kits Included)
Operating Temperature: -30 to 70° C (-22 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

Software
WiFi Standards: 802.11a/b/g/n/ac
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
VLAN: 802.1Q
BSSID: Up to 4 per Radio
Advanced QoS: Per-User Rate Limiting
Guest Traffic Isolation: Supported
Power Save: Supported
WMM: Voice, Video, Best Effort, and Background
Concurrent Clients: 100+

Supported Data Rates (Mbps)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac: 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
