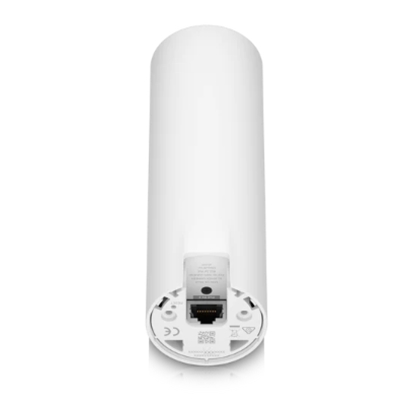

WIRELESS ACCESS POINT UBIQUITI U6-MESH 5GHZ 4800 MBIT/S, 573,5 MBIT/S, 4800 MBIT/S, 1000 MBIT/S, 2.4 – 5 GHZ

Descrizione

WIRELESS ACCESS POINT UBIQUITI U6-MESH 5GHZ 4800 MBIT/S, 573,5 MBIT/S, 4800 MBIT/S, 1000 MBIT/S, 2.4 – 5 GHZ

Mechanical
Dimensions: Ø48.5 x 159.5 mm (Ø1.9 x 6.28″)
Weight: 400 g (0.88 lb)
Enclosure material: Plastic, aluminum
Mount materials: Plastic
Weatherproofing: IPX5

Hardware
Management interfaces: Ethernet, Bluetooth
Networking interface: (1) GbE RJ45 port
Button: Factory reset
LED: White/blue
Power method: PoE
Power supply: UniFi PoE switch, 48V, 0.32A PoE adapter (included)
Supported voltage range: 44 to 57VDC
Max. power consumption: 11.4W
Max. TX power:
– 2.4 GHz: 22 dBm
– 5 GHz: 26 dBm
MIMO:
– 2.4 GHz: 2 x 2 (UL MU-MIMO)
– 5 GHz: 4 x 4 (DL/UL MU-MIMO)
Throughput rate:
– 2.4 GHz: 573.5 Mbps
– 5 GHz: 4.8 Gbps
Antenna gain:
– 2.4 GHz: 3 dBi
– 5 GHz: 5 dBi
Mounting: Wall, desktop, pole mount (included) / Ceiling mount (optional)
Operating temperature: -30 to 60° C (-22 to 140° F)
Operating humidity: 5 – 95% noncondensing
Certifications: CE, FCC, IC

Software
WiFi standards: 802.11a/b/g – WiFi 4/WiFi 5/WiFi 6
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 300+
Zero wait DFS: Yes (Supported with upcoming firmware versions)

Supported Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
