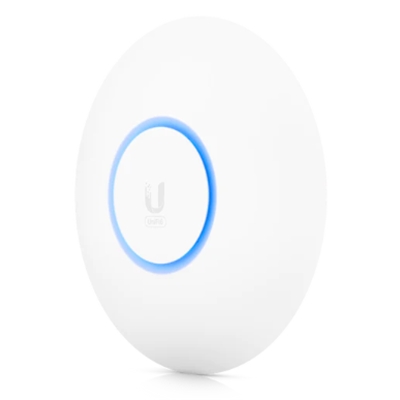

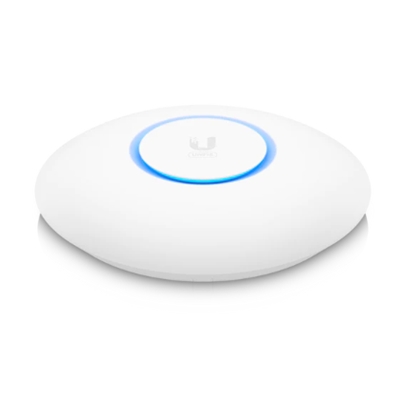

WIRELESS ACCESS POINT UBIQUITI UNIFI 6 U6-LITE 5GHZ 2X2 MU-MIMO 2.4GHZ 2X2 MIMO

Descrizione

WIRELESS ACCESS POINT UBIQUITI UNIFI 6 U6-LITE 5GHZ 2X2 MU-MIMO 2.4GHZ 2X2 MIMO

Mechanical
Dimensions: Ø160 x 32.65 mm (Ø6.3 x 1.3″)
Weight:
– Without mount: 300 g (10.6 oz)
– With mount: 315 g (11.1 oz)
Enclosure materials: Polycarbonate, aluminum
Mounting materials: Polycarbonate, SGCC Steel

Hardware
Management interfaces: Ethernet, Bluetooth
Networking interface: (1) GbE RJ45 port
Button: Factory reset
LED: White/blue
Power method: PoE, passive PoE (48V)
Power supply: PoE, 48V, 0.32A PoE adapter (optional)
Supported voltage range: 44—57V DC
Max. power consumption: 13.5W
Max. TX power:
– 2.4 GHz: 23 dBm
– 5 GHz: 23 dBm
MIMO:
– 2.4 GHz: 2 x 2
– 5 GHz: 2 x 2
Throughput rate:
– 2.4 GHz: 300 Mbps
– 5 GHz: 1201 Mbps
Antenna gain:
– 2.4 GHz: 2.8 dBi
– 5 GHz: 3 dBi
Operating temperature: -30 to 60° C (-22 to 140° F)
Operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC

Software
WiFi standards: 802.11a/b/g, WiFi 4/WiFi 5/WiFi 6
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 300+

Supported Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4): 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac (WiFi 5): 6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
802.11ax (WiFi 6): 7.3 Mbps to 1.2 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80)
