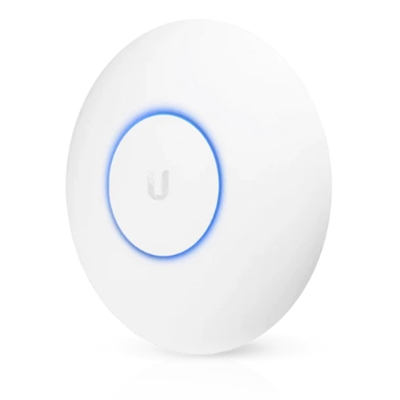

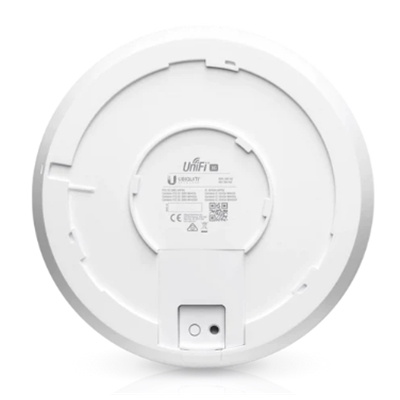

WIRELESS ACCESS POINT UBIQUITI UNIFI UAP-XG ENTERPRISE – 1500 CLIENT CAPACITY – 10GBPS

Descrizione

WIRELESS ACCESS POINT UBIQUITI UNIFI UAP-XG ENTERPRISE – 1500 CLIENT CAPACITY – 10GBPS

Mechanical
Dimensions: 228 x 228 x 50 mm (8.98 x 8.98 x 1.97″)
Weight:
– Without Mount: 1.2 kg (2.65 lb)
– With Mount: 1.35 kg (2.98 lb)
Networking Interface:
– (1) 10/100/1000 RJ45 Ethernet Port
– (1) 1/10 Gbps ICM Ethernet Port
Button: Reset
Power Method: PoE++
Supported Voltage Range: 44 to 57VDC
Power Supply: PoE Injector 50VDC, 1.2A Gigabit
Max. Power Consumption: 31W
Radios:
– 2.4 GHz radio
– 5 GHz low-band radio, ch 36-64
– 5 GHz high-band radio, ch 100-165
– 2.4/5 GHz security radio
Max. TX Power:
– 2.4 GHz: 25 dBm
– 5 GHz: 25 dBm
MIMO:
– 2.4 GHz: 4 x 4
– 5 GHz: 4 x 4
Radio Rates:
– 2.4 GHz: 800 Mbps
– 5 GHz: 1.7 Gbps
Antennas:
– 2.4 GHz: (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each
– 5 GHz: (2) Dual-Port, Dual-Polarity Antennas, 8 dBi each
Mounting: Wall/Ceiling/Junction Box (Kits Included)
Operating Temperature: -10 to 60° C (14 to 140° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

Software
WiFi Standards: 802.11 a/b/g/n/r/k/v/ac/ac-wave2
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11 w/PMF
BSSID: Up to 8 per Radio
VLAN: 802.1Q
Advanced QoS: Per-User Rate Limiting
Guest Traffic Isolation: Supported
Power Save: Supported
Beamforming: Supported
WMM: Voice, Video, Best Effort, and Background
Concurrent Clients: 1500

Supported Data Rates (Mbps)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11n: 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
802.11ac:
– 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)
– 58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)
