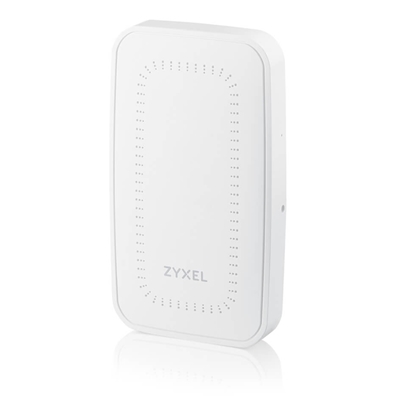

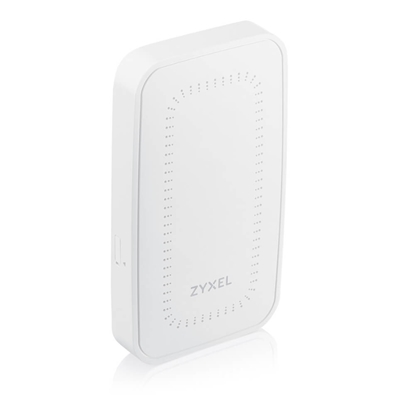

WIRELESS ACCESS POINT ZYXEL WAX300H-EU0101F NEBULAFLEX DUALRADIO 2X 802.11ABGN/AC 2975MBPS 3P GIGABIT- SUPP.POE 19W

Descrizione

WIRELESS ACCESS POINT ZYXEL WAX300H-EU0101F NEBULAFLEX DUALRADIO 2X 802.11ABGN/AC 2975MBPS 3P GIGABIT- SUPP.POE 19W

Wireless
Standard: IEEE802.11 ax/ac/n/g/b/a
MIMO: MU-MIMO
Wireless speed:
– 2.4GHz: 575 Mbps
– 5GHz: 2400 Mbps
Frequency band:
– 2.4 GHz: Europe (ETSI): 2.412 to 2.472 GHz
– 5 GHz: European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth: 20-, 40- ,80- and 160-MHz
Conducted typical transmit output power: EU (2.4GHz/5GHz): 19/23 dBm

RF Design
Antenna type: Internal Antenna
Antenna gain:
– 2.4 GHz: 3 dBi, 2X2:2SS
– 5 GHz: 4 dBi, 2×2:2SS
Minimum receive sensitivity: Min. Rx sensitivity up to -99 dBm

WLAN Feature
Band steering: Yes
WDS/Mesh: Yes
Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
DCS: Yes
Load balancing: No
Advanced Cellular Coexistence: Yes

Security
Encryption: WPA, WPA2, WPA3
Authentication:
– IEEE 802.1X
– RADIUS anthentication
Access management:
– L2-isolation
– MAC filtering
– Rogue AP detection

Networking
IPv6: Yes
VLANs: Yes
WMM: Yes
U-APSD: Yes

Management
Operating mode:
– Nebula cloud managed
– Controller-managed
– Standalone
ZON Utility:
– Discovery of Zyxel switches, APs and gateways
– Centralized and batch configurations:
– IP configuration
– IP renew
– Device reboot
– Device locating
– Web GUI access
– Firmware upgrade
– Password configuration
Web UI/CLI: Yes
SNMP: No

Physical Specifications
Item:
– Dimensions (WxDxH)(mm/in.): 173 x 97 x 29 / 6.81 x 3.82 x 1.14
– Weight (g/lb.): 310/0.68
Packing:
– Dimensions (WxDxH)(mm/in.): 195 x 120 x 53 / 7.68 x 4.72 x 2.09
– Weight (g/lb.): 483/1.06
Included accessories: Multi-purpose mounting bracket with screws
Optional accessories (Sold separately): WAC500H-DMNT10F: Desktop mount Kit (10 sets)
MTBF (hr): 750,816

Physical Interfaces
Ethernet port:
– 1x 10/100/1000M uplink
– 3x 10/100/1000M downlink(including one PoE PSE)
Power: PoE (802.3at): power draw 19 W (include 5W for PoE PSE)
PoE modes:
– IEEE802.3af: Not supported
– IEEE802.3at: Unrestricted
– IEEE802.3bt: –

Environmental Specifications
Operating:
– Temperature: 0°C to 50°C/32°F to 122°F
– Humidity: 10% to 90% (non-condensing)
Storage:
– Temperature: -40°C to 70°C/-40°F to 158°F
– Humidity: 10% to 90% (non-condensing)

Certifications
Radio:
– FCC Part 15C
– FCC Part 15E
– ETSI EN 300 328
– EN 301 893
– LP0002
– EN 60601-1-2
EMC:
– FCC Part 15B
– EN 301 489-1
– EN 301 489-17
– EN55022
– EN55024
– EN61000-3-2/-3
– BSMI CNS13438
Safety:
– EN 60950-1
– IEC 60950-1
– BSMI CNS14336-1
