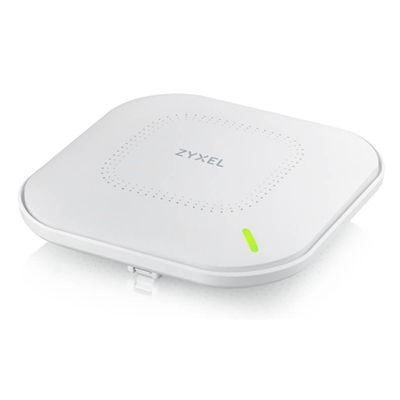

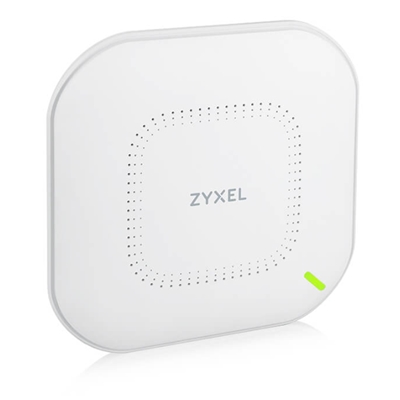

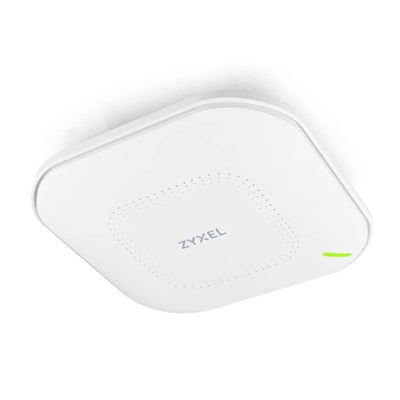

WIRELESS ACCESS POINT ZYXEL WAX630S-EU0101FNEBULAFLEX DUALRADIO 4X4 802.11ABGN/AC/AX 2975MBPS 2P LAN- SUPP.POE 19W

Descrizione

WIRELESS ACCESS POINT ZYXEL WAX630S-EU0101FNEBULAFLEX DUALRADIO 4X4 802.11ABGN/AC/AX 2975MBPS 2P LAN- SUPP.POE 19W

Product name
Description: 802.11ax (WiFi 6) Dual-Radio Unified Pro Access Point

Wireless
Standard: IEEE 802.11 ax/ac/n/g/b/a
MIMO: MU-MIMO
Wireless speed:
– 2.4GHz: 575 Mbps
– 5GHz: 2400 Mbps
Frequency band:
2.4 GHz:
– USA (FCC): 2.412 to 2.462 GHz
– Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
– USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
– Europe (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth: 20-, 40-, 80- and 160-MHz
Conducted typical transmit output power:
– US (2.4GHz/5GHz): 23/28 dBm
– EU (2.4GHz/5GHz): 19/25 dBm

RF Design
Antenna type: 4×4 + 2×2 smart antenna
Antenna gain:
– 2.4GHz: Peak gain 3 dBi
– 5GHz: Peak gain 4.5 dBi
Minimum Receive sensitivity: Min. Rx sensitivity up to -101 dBm

WLAN feature
Band Steering: Yes
WDS/Mesh: Yes
Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
DCS: Yes
Load balancing: Yes

Security
Encryption:
– WEP
– WPA
– WPA2-PSK
– WPA3
Authentication:
– WPA
– WPA2
– WPA3-Enterprise
– EAP
– IEEE 802.1X
– RADIUS authentication
Access management:
– L2-isolation
– MAC filtering
– Rogue AP detection

Networking
IPv6: Yes
VLANs: Yes
WMM: Yes
U-APSD: Yes

Management
Operating mode:
– Nebula Cloud managed
– Controller-managed
– Standalone
ZON Utility:
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations:
– IP configuration
– IP renew
– Device factory reset
– Device reboot
– Device locating
– Web GUI access
– Firmware upgrade
– Password configuration
Zyxel Wireless Optimizer:
– WiFi AP planning
– WiFi coverage detection
– Wireless health management
Web UI/CLI: Yes
SNMP: Yes

Physical Specifications
Item:
– Dimensions (WxDxH) 180 x 180 x 39 mm
– Weight 530g
Packing:
– Dimensions (WxDxH) 228 x 216 x 63 mm
– Weight 765g
Included accessories: Mount plate, Mounting screws
MTBF (hr): 321,114

Physical Interfaces
Ethernet port:
– 1 x 1/2.5Gbps LAN
– 1 x 1Gbps LAN
Power:
– PoE (802.3) at: power draw 19 W
– DC input: 12 VDC 2 A

Environmental Specifications
Operating:
– Temperature: 0°C to 50°C/32°F to 122°F
– Humidity: 10% to 95% (non-condensing)
Storage:
– Temperature: -40°C to 70°C/-40°F to 158°F
– Humidity: 10% to 95% (non-condensing)

Certifications
Radio:
– FCC Part 15C
– FCC Part 15E
– ETSI EN 300 328
– EN 301 893
– LP0002
EMC:
– FCC Part 15B
– EN 301 489-1
– EN 301 489-17
– EN55022
– EN55024
– EN61000-3-2/-3
– EN60601-1-2
– BSMI CNS13438
Safety:
– Safety EN 60950-1
– IEC 60950-1
– BSMI CNS14336-1
