Descrizione

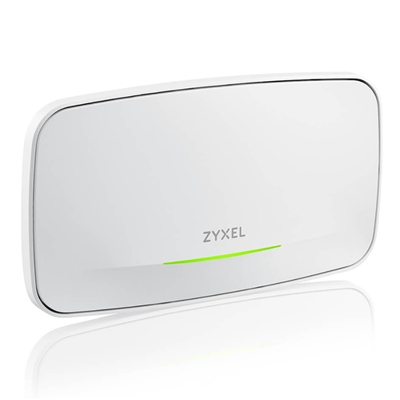

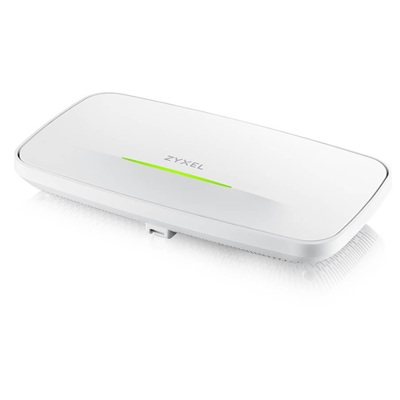

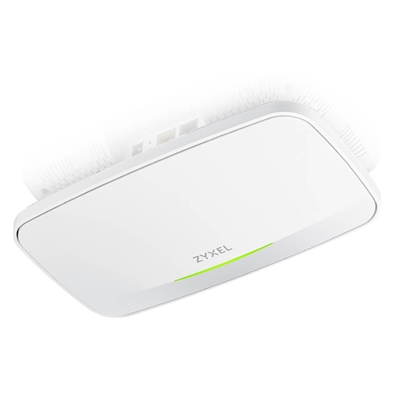

WIRELESS ACCESS POINT ZYXEL WAX640S-6E-EU0101F NEBULAFLEX PRO WIFI6E TRIRADIO 4X4 802.11ABGN/AC/AX 7775MBPS- ANT.SMART INT.
Product name
Description: 802.11ax (WiFi 6E) Tri-Radio Unified Pro Access Point
Wireless
Standard: IEEE 802.11 ax/ac/n/g/b/a
MIMO: MU-MIMO
Wireless speed:
– 2.4GHz: 575 Mbps
– 5GHz: 2400 Mbps
– 6GHz: 4800 Mbps
Frequency band:
2.4 GHz:
– USA (FCC): 2.412 to 2.462 GHz
– Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
– USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
– European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
6 GHz:
– USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz
– European (ETSI): 5.925 to 6.425 GHz
Bandwidth: 20-, 40-,80- and 160-MHz
Conducted typical transmit output power (limited by local regulatory requirements):
– US (2.4GHz/5GHz) or +/6GHz): 24/25/24dBm
– EU (2.4GHz/5GHz) or +/6GHz): 18/25/19dBm
RF Design
Antenna type: 4×4 + 2×2+ 2×2 Smart Antenna
Antenna gain:
– 2.4 GHz: Peak Gain 3dBi
– 5 GHz: Peak Gain 6dBi
– 6 GHz: Peak Gain 6dBi
Minimum Receive sensitivity: Min. Rx sensitivity up to -104 dBm
WLAN feature
Band Steering: Yes
WDS/Mesh: Yes
Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
DCS: Yes
Load balancing: Yes
Advanced Cellular Coexistence: Yes
Security
Encryption:
– WEP
– WPA
– WPA2-PSK
– WPA3
Authentication:
– WPA
– WPA2
– WPA3-Enterprise
– EAP
– IEEE 802.1X
– RADIUS authentication
Access management:
– L2-isolation
– MAC filtering
– Rogue AP detection
Networking
IPv6: Yes
VLANs: Yes (Doesn’t support traffic shaping in NCC)
WMM: Yes
U-APSD: Yes
Management
Operating mode:
– Nebula Cloud managed
– Controller-managed
– Standalone
ZON Utility:
– Discovery of Zyxel switches, APs and gateways
– Centralized and batch configurations
– IP configuration
– IP renew
– Device reboot
– Device locating
– Web GUI access
– Firmware upgrade
– Password configuration
Web UI/CLI: Yes
SNMP: Yes
Physical Specifications
Item:
– Dimensions (WxDxH)(mm/in.): 270 x 150 x 47 mm / 10.63 x 5.91 x 1.85
– Weight (g/lb.): 900g/1.98lb
Packing:
Dimensions (WxDxH)(mm/in.): 324 x 184 x 74 mm / 11.76 x 7.24 x 2.91
Weight (g/lb.): 1220g/2.69lb
Included accessories:
– Mount plate
– Mounting screws
MTBF (hr): 361,400
Physical Interfaces
Ethernet port:
– 1 x 1/2.5Gbps LAN
– 1 x 1Gbps LAN
Power:
– PoE (802.3)bt: power draw 28 W
– DC input : 12 VDC 2.5A
PoE Modes:
– IEEE802.3af: No Wireless
– IEEE802.3at: Unrestricted; 6GHz 2T4R in Some Countries
– IEEE802.3bt: Unrestricted
Environmental Specifications
Operating:
– Temperature: 0°C to 50°C/32°F to 122°F
– Humidity: 10% to 95% (non-condensing)
Storage:
– Temperature: -40°C to 70°C/-40°F to 158°F
– Humidity: 10% to 95% (non-condensing)
Certifications
Radio:
– FCC Part 15C
– FCC Part 15E
– ETSI EN 300 328
– EN 301 893
– EN 303 687
– LP0002
EMC:
– FCC Part 15B
– EN 301 489-1
– EN 301 489-17
– EN55022
– EN55024
– EN60601-1-2
– BSMI CNS13438
Safety:
– Safety EN 62368
– BSMI CNS14336-1
