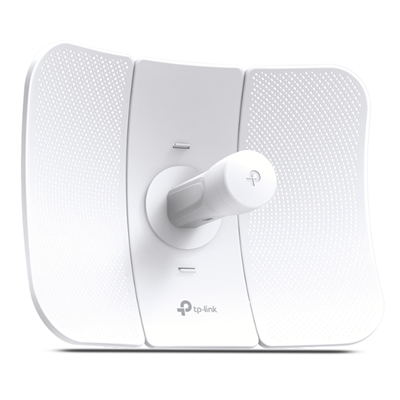

WIRELESS ACCESSPOINT OUTDOOR TP-LINK CPE710 5GHZ AC867 23DBI – POE-GARANZIA 3 ANNI-

Descrizione

WIRELESS ACCESSPOINT OUTDOOR TP-LINK CPE710 5GHZ AC867 23DBI – POE-GARANZIA 3 ANNI-

CARATTERISTICHE HARDWARE
Processore: Qualcomm 750MHz CPU, MIPS 74Kc
Memoria: 128 MB DDR2 RAM, 16 MB Flash
Interfaccia:
– 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
– 1 Reset Button
Alimentazione:
– Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
– Voltage range: 16-27V DC
Dimensioni ( L x P x A ): 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Guadagno antenna: 23 dBi
Ampiezza del diagramma di emissione: 9° (Azimuth)/7° (Elevation)
Sicurezza:
– 15 KV ESD Protection
– 6 KV Lightning Protection
Enclosure:
– Material: Outdoor PC stabilized plastic
– Weatherproof: IP65 water and dust proof design

CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11a/n/ac
Velocità wireless:
– Up to 867 Mbps (80 MHz, Dynamic)
– Up to 400 Mbps (40 MHz, Dynamic)
– Up to 173.4 Mbps (20 MHz, Dynamic)
Frequenza: 5.15–5.85 GHz
Potenza di trasmissione: Max. 27 dBm (Adjustable power by 1dBm)

CARATTERISTICHE SOFTWARE
Configurazione di rete:
– WAN: Static/ Dynamic/ PPPoE
– LAN: Static/ Dynamic/ DHCP
– Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
– Security: SPI Firewall/ Ping Forbidden/ DoS Protection
– Access Control
– Static Routing
– Bandwidth Control
– IP & MAC Binding
Configurazioni wireless:
– Selectable Channel Width: 20/40/80MHz
– Auto Channel Selection
– Transmit Power Control
– Dynamic Frequency Selection(DFS)
– WDS Enable/ Disable
– Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
– SSID Broadcast Enable/ Disable
– Multi-SSID with VLAN Tagging(AP Mode only)
– Distance/ ACK Timeout Setting
– Wireless MAC Address Filter
– Wireless Advanced:
– Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
– Long Range PtP
Gestione:
– Discovery and Remote Management via Pharos Control application
– HTTP/ HTTPS Web-based management
– System log
– SNMP Agent(v2c)
– Ping Watch Dog
– Dynamic DDNS
– SSH Server
Tool di sistema:
– Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
– Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
– Spectrum Analyzer
– Speed Test
– Ping
– Traceroute
– Antenna Alignment
Ottimizzazioni di sistema: Optimized IGMP Snooping / Proxy for multicast applications

CARATTERISTICHE ADATTATORE POE
Dimensioni ( L x P x A ): 85.8×43.9×29.7 mm
Interfacce:
– 1 AC Jack with Earth Ground
– 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
– 1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
Tasto: Remote Reset Button
Indicatori di carica LED: Green
Input: 100-240VAC, 50/60Hz
Output: 24VDC, 0.5A Max, +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficienza: >84.29%
Certificazioni: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

ALTRO
Certificazione: CE, FCC, RoHS, IP65, IC
Contenuto della confezione:
– Outdoor Wireless CPE
– 24V 0.5A Passive PoE Adapter
– Pole Mounting Kits
– AC Power Cord
– Installation Guide
Requisiti di sistema: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Ambiente:
– Operating Temperature: -40℃~70℃ (-40℉~158℉)
– Storage Temperature: -40℃~70℃ (-40℉~158℉)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~95% non-condensing
