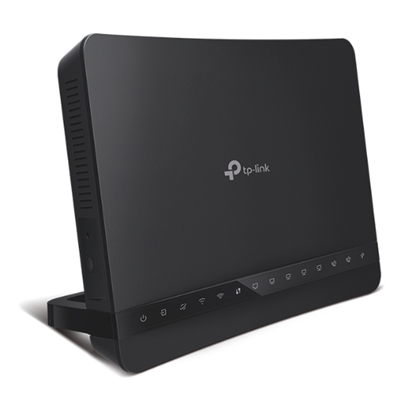

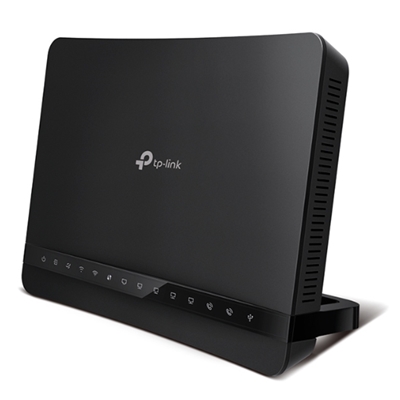

WIRELESS MODEM ROUTER VOIP VDSL AX1500 TP-LINK VX220-G2V DUAL BAND 1201M A 5GHZ+300M A 2.4GHZ-USB 2.0, TR-069, AGILE SOLUTION

Descrizione

WIRELESS MODEM ROUTER VOIP VDSL AX1500 TP-LINK VX220-G2V DUAL BAND 1201M A 5GHZ+300M A 2.4GHZ-USB 2.0, TR-069, AGILE SOLUTION

CARATTERISTICHE HARDWARE
Interfaccia:
– 4 10/100/1000Mbps RJ45 LAN Ports
– 1 10/100/1000Mbps RJ45 WAN Port
– 1VDSL2 Port
– 2 FXS Ports
– 1 USB 2.0 Ports
Tasto: Power On/Off Button, Reset Button, WPS On/Off Button, Wireless On/Off Button
Alimentatore esterno: 12V/2.0A
Standard IEEE: IEEE 802.3, IEEE 802.3u, 802.3ab
Standard VDSL2:
– ITU G.993.2, Up to 35b profile
– ITU-T G.993.5 (G.vector)
– ITU-T G.998.4 (G.INP)
Standard ADSL:
– Full-rate ANSI T1.413 Issue 2,
– ITU-T G.992.1(G.DMT),
– ITU-T G.992.2(G.Lite),
– ITU-T G.994.1 (G.hs),
– ITU-T G.995.1
Standard ADSL2:
– ITU-T G.992.3 (G.DMT.bis)
– ITU-T G.992.4 (G.lite.bis)
Standard ADSL2+: ITU-T G.992.5
Dimensioni ( L x P x A ): 8.4 × 5.7 × 3.2 in. (214.0 × 144.5 × 80.0 mm)

CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11 ax/ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequenza: 2.4GHz and 5GHz(not Supports DFS)
Signal rate: 1201Mbps at 5GHz, 300Mbps at 2.4GHz
Potenza di trasmissione: <20dBm (2.4GHz), <23dBm (5GHz)
Funzionalità wireless: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Sicurezza wireless: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
Schedulazione wireless: Support 2.4GHz and 5GHz Wireless Schedule

CARATTERISTICHE SOFTWARE
QoS (Quality of Service): ATM QoS, Bandwidth Control
Sicurezza: NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
Gestione: Web Based Configuration (HTTP), Remote management, Command Line Interface, SSL for TR-069, SNMP v1/2c, Diagnostic Tools, Web Based Firmware Upgrade
DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS: DynDns, NO-IP
VPN: OpenVPN, PPTP VPN, IPSec VPN
Protocolli: Support IPv4 and IPv6
Caratteristiche ATM: ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
Funzionalità avanzate: Auto Gateway, Parental Controls, Network Address Translation(NAT), Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3
Condivisione USB: Support Samba (Storage) / FTP Server / Media Server, 3G/4G Modem
Rete ospiti: 2.4GHz and 5GHz multi SSID
VPN IPsec: Support up to 16 IPSec VPN tunnels

ALTRO
Certificazione: CE
Requisiti di sistema:
– Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
– Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled brower
Ambiente:
– Operating Temperature: 0°C~40°C (32°F ~104°F)
– Storage Temperature: -40°C~70°C (-40°F ~158°F)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
