Descrizione

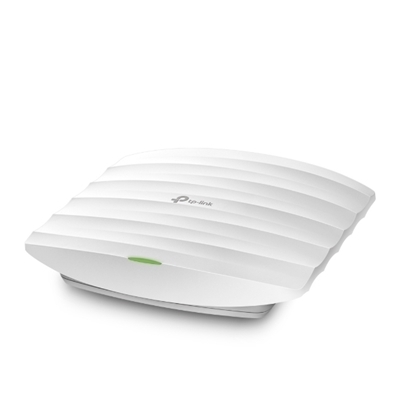

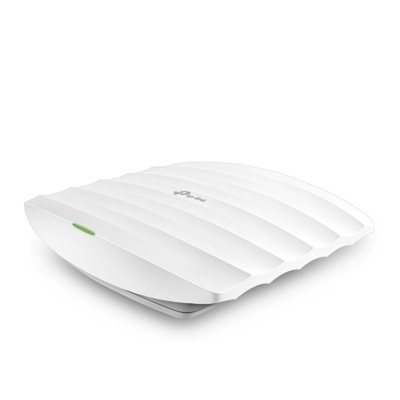

WIRELESS N ACCESS POINT 1750M DUALBAND TP-LINK EAP245 1P GIGA LAN,802.3AF POE, MULTI-SSID, 6 ANTENNE INTERNE
CARATTERISTICHE HARDWARE

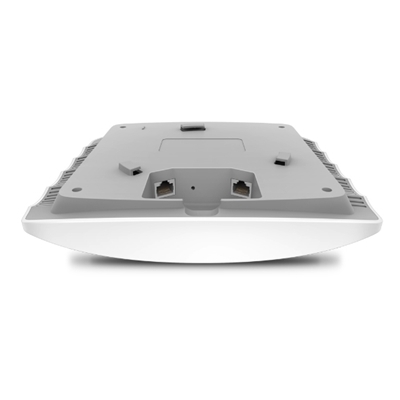

Interfaccia: 2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af PoE and Passive PoE)
Physical security lock: Yes
Tasto: Reset
Alimentazione:
– 802.3af/at PoE
– 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Consumo energetico: 12.3 W
Dimensioni ( L x P x A ): 205.5 × 181.5 × 37.1 mm
Tipo di antenna: Internal Omni
– 2.4 GHz: 3× 3.5 dBi
– 5 GHz: 3× 4 dBi
Tipo di montaggio: Ceiling /Wall Mounting (Kits included)
CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11ac/n/g/b/a
Frequenza: 2.4GHz and 5GHz
Signal rate:
– 5GHz: Up to 1300Mbps
– 2.4GHz: Up to 450Mbps
Funzionalità wireless:
– Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
– Enable/Disable Wireless Radio
– Automatic Channel Assignment
– Transmit Power Control (Adjust Transmit Power on dBm)
– QoS(WMM)
– MU-MIMO
– Seamless Roaming*
– Omada Mesh*
– Band Steering
– Load Balance
– Airtime Fairness
– Beamforming
– Rate Limit
– Reboot Schedule
– Wireless Schedule
– Wireless Statistics based on SSID/AP/Client
Sicurezza wireless:
– Captive Portal Authentication
– Access Control
– Wireless Mac Address Filtering
– Wireless Isolation Between Clients
– SSID to VLAN Mapping
– Rogue AP Detection
– 802.1X Support
– 64/128/152-bit WEP / WPA / WPA2-Enterprise,
– WPA-PSK / WPA2-PSK
Potenza di trasmissione:
CE:
– ≤20 dBm (2.4GHz)
– ≤23 dBm (5GHz)
FCC:
– ≤24 dBm (2.4 GHz)
– ≤24 dBm (5 GHz)
GESTIONE
Omada App: Yes
Centralized Management:
– Omada Cloud-Based Controller
– Omada Hardware Controller (OC300)
– Omada Hardware Controller (OC200)
– Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Avvisi e-mail: Yes
LED ON/OFF: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c
Log di sistema locale e remoto: Local/Remote Syslog
SSH: Yes
Gestione web-based: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
– AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
– Gigabit Passive PoE Adapter
– Power Cord
– Mounting Kits
– Installation Guide
Requisiti di sistema: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Ambiente:
– Operating Temperature: 0–40 ℃ (32–104 ℉)
– Storage Temperature: -40–70 ℃ (-40–158 ℉)
– Operating Humidity: 10–90% RH non-condensing
– Storage Humidity: 5–90% RH non-condensing
