Descrizione

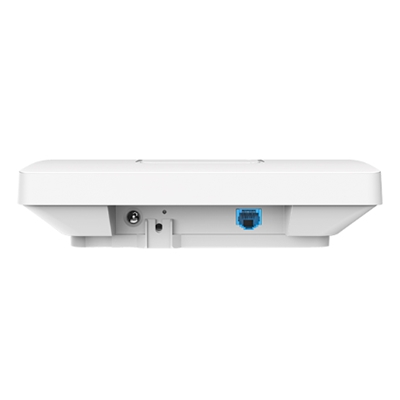

WIRELESS N ACCESS POINT AC1200 DUALBAND IP-COM W63AP 1P GIGA,IEEE 802.11AC MU-MIMO, ANT. 4DBI – GARANZIA 5 ANNI
Product Information
Model: W63AP
Appearance: Ceiling
Dimensions: 178 mm x 178 mm x 38 mm
Hardware Features
Frequency band: 2.4 GHz, 5 GHz
Wireless standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
2.4 GHz data rate: 1 – 300 Mbps
5 GHz data rate: 6 – 867 Mbps
Ethernet port: 1 x 10/100/1000 Base-TX port
Button: 1 x Reset
LED indicator: 1 x Power
Max. power consumption: Full-load 13.5W
Power supply standard: IEEE 802.3at
Software Specification
Operating modes: AP, Client + AP
Hide SSID: Supported
Max. No. of SSID:
– 2.4 GHz: 8
– 5 GHz: 4
Max. connected clients:
– 2.4 GHz: 128
– 5 GHz: 128
WEP: Supported
WPA-PSK: AES/TKIP
WPA2-PSK: AES/TKIP
WPA: Supported
WPA2: Supported
Access control: MAC address-based
Adjustable power transmit: Supported
Frequency Analysis: Supported
AP isolation: Supported
Connected clients control: Supported
RSSI Threshold: Supported
WMM: Supported
VLAN tagging for SSID: Supported
Antenna gain: 4 dBi
2.4 GHz Max output power: 23 +/- 1.5 dBm
5 GHz Max output power: 23 +/-1.5 dBm
802.11b RX sensitivity: -93 dBm
2.4 GHz 802.11n (MCS7) RX sensitivity: -72 dBm
5 GHz 802.11a RX sensitivity: -93 dBm
5 GHz 802.11n (MCS7) RX sensitivity: -74 dBm
LED control: Supported
Diagnostics Tool: Ping, Traceroute
Scheduled reboot: Supported
Reboot at specified interval: Supported
Management: Web UI
System logs: Supported
Firmware Upgrade: Local and AC upgrade
Reboot: Local and AC reboot
Reset: Local and AC reset
Backup configuration: Supported
Restore configuration: Supported
Operating Environment
Default login IP address: 192.168.0.254
Default user name: admin
Default password: admin
Operating temperature: -10℃ – 45℃
Operating humidity: (10%-90%) RH, non-condensing
Storage temperature: -30℃ – 70℃
Storage humidity: (10%-90%) RH, non-condensing
Packaging
Giftbox: Yes
Wireless ceiling AP: 1
Bracket: 1
Plastic nut: 4
Plastic anchor: 4
Screw: 4
Quick installation guide: 1
GPL: 1
Certificates
Certificates: CE, FCC, RoHS
