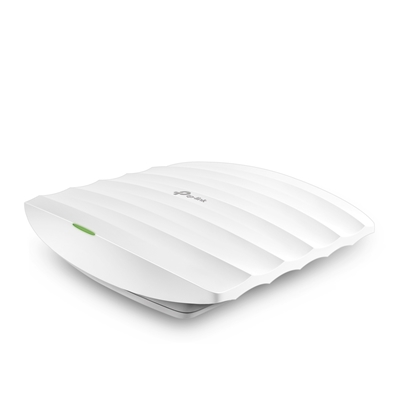

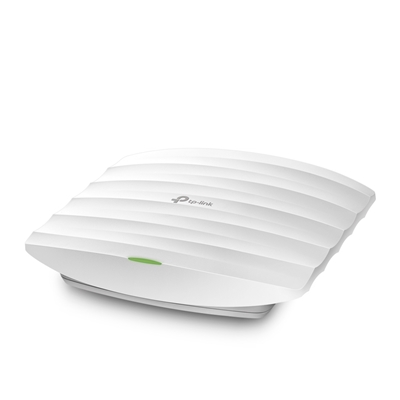

WIRELESS N ACCESS POINT AC1350 DUALBAND TP-LINK EAP223 1P GIGABIT,802.3AF POE,MULTI-SSID, 4 ANT.INT.4DBI-POWER ADAP. (NON INCL.)

Descrizione

WIRELESS N ACCESS POINT AC1350 DUALBAND TP-LINK EAP223 1P GIGABIT,802.3AF POE,MULTI-SSID, 4 ANT.INT.4DBI-POWER ADAP. (NON INCL.)

CARATTERISTICHE HARDWARE
Interfaccia: Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af/at PoE and Passive PoE)
Physical security lock: Yes
Tasto: Reset
Alimentazione:
• 802.3af/at PoE
• 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included)
Consumo energetico: EU: 9.7W, US: 12.1W
Dimensioni ( L x P x A ): 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Tipo di antenna: 3 Internal Omni
• 2.4 GHz: 4 dBi
• 5 GHz: 5 dBi
Tipo di montaggio: Ceiling /Wall Mounting (Kits included)

CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11ac/n/g/b/a
Frequenza: 2.4 GHz and 5 GHz
Signal rate:
• 5 GHz:Up to 867 Mbps
• 2.4 GHz:Up to 450 Mbps
Funzionalità wireless:
• Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band, 7 for 5GHz band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming*
• Omada Mesh*
• Band Steering
• Load Balance
• MU-MIMO
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Sicurezza wireless:
• Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
Potenza di trasmissione:
• CE:
≤20 dBm(2.4 GHz, EIRP)
≤23 dBm(5 GHz, EIRP)
• FCC:
≤24 dBm(2.4 GHz)
≤22 dBm(5 GHz)

GESTIONE
Omada App: Yes
Centralized Management:
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access: Yes, through:
• OC300
• OC200
• Omada Software Controller
• Omada Cloud-Based Controller
Avvisi e-mail: Yes
LED ON/OFF: Yes
Management MAC Access Control: Yes
SNMP: v1,v2c
Log di sistema locale e remoto: Local/Remote Syslog
SSH: Yes
Gestione web-based: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
• AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223
• Mounting Kits
• Installation Guide
Requisiti di sistema: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Ambiente:
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
