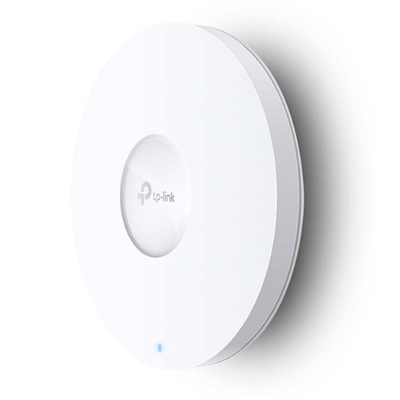

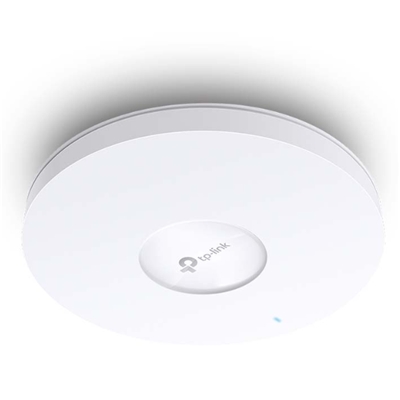

WIRELESS N ACCESS POINT AX1800 CEILING MOUNT DUALBAND TP-LINK EAP613 WI-FI 6-1P GIGA RJ45,802.3AT POE 12V MU-MIMO (ALIM.NO INCL)

Descrizione

WIRELESS N ACCESS POINT AX1800 CEILING MOUNT DUALBAND TP-LINK EAP613 WI-FI 6-1P GIGA RJ45,802.3AT POE 12V MU-MIMO (ALIM.NO INCL)

CARATTERISTICHE HARDWARE
Interfaccia: 1× Gigabit Ethernet (RJ-45) Port
Tasto: Reset
Alimentazione:
• 802.3at PoE
• 48 V Passive PoE
• 12 V / 1 A DC (Power Adapter IS NOT included)
Consumo energetico:
– 11.0W (For PoE)
– 9.9W (For DC)
Dimensioni ( L x P x A ): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Tipo di antenna:
– Internal Omni Antenna
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi

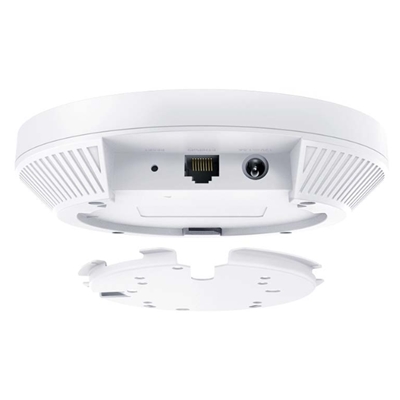

Tipo di montaggio:
• Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting

CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11ax/ac/n/g/b/a
Frequenza: 2.4 GHz and 5 GHz
Signal rate:
• 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps
Funzionalità wireless:
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming
• Omada Mesh
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Sicurezza wireless:
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Potenza di trasmissione:
• CE:
– <20 dBm(2.4 GHz, EIRP)
– <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)
• FCC:
– <25 dBm (2.4 GHz)
– <25 dBm (5 GHz)

GESTIONE
Omada App: Yes
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
Cloud Access: Yes, through
• OC300
• OC200
• Omada Software Controller
• Omada Cloud-Based Controller
Avvisi e-mail: Yes
LED ON/OFF: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
Log di sistema locale e remoto: Local/Remote Syslog
SSH: Yes
Gestione web-based: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

ALTRO
Certificazione:
CE, FCC, RoHS
Contenuto della confezione:
• EAP613
• Ceiling/ Wall Mounting Kits
• Installation Guide
Requisiti di sistema: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Ambiente:
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
