WIRELESS N WALL-PLATE ACCESS POINT AC1200 TP-LINK EAP235-WALL UPLINK:1P GIGABIT RJ45-DOWNLINK: 3P GIGABIT RJ45-DUAL BAND 2.4/5G

Descrizione

WIRELESS N WALL-PLATE ACCESS POINT AC1200 TP-LINK EAP235-WALL UPLINK:1P GIGABIT RJ45-DOWNLINK: 3P GIGABIT RJ45-DUAL BAND 2.4/5G

CARATTERISTICHE HARDWARE
Interfaccia:
• Uplink: 1× 10/100/1000 Mbps Ethernet Port

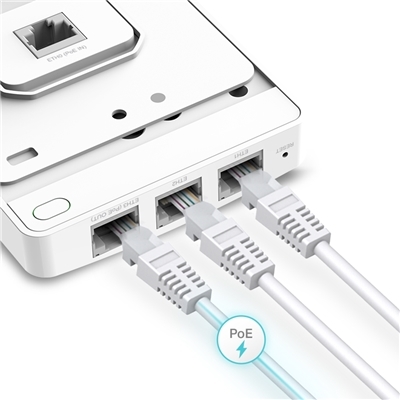

• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.)
Physical security lock: Yes
Tasto: Reset
Alimentazione: 802.3af/802.3at PoE
Consumo energetico: 9.8 watts /24.4 watts (PoE Out Included)
Dimensioni ( L x P x A ): 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Dimensions: 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna: 2 Dual-Band Antennas:
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 4 dBi
Tipo di montaggio: Wall Plate Mounting

CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11a/b/g/n/ac
Frequenza: 2.4 GHz and 5 GHz
Signal rate:
• 5 GHz: Up to 867 Mbps
• 2.4 GHz: Up to 300 Mbps
Funzionalità wireless:
• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Band Steering
• Beamforming
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Sicurezza wireless:
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Local LAN port based VLAN
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Potenza di trasmissione:
• CE:
≤20 dBm (2.4 GHz, EIRP)
≤23 dBm (5 GHz, EIRP)
• FCC:
≤21 dBm (2.4 GHz)
≤21 dBm (5 GHz)

GESTIONE
Omada App: Yes
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Avvisi e-mail: Yes
LED ON/OFF: Yes
Management MAC Access Control: Yes
SNMP: v1,v2c
Log di sistema locale e remoto: Local/Remote Syslog
SSH: Yes
Gestione web-based: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

ALTRO
Certificazione: CE, FCC, RoHS, EN60601-1-2 (MEDICAL EMC)
Contenuto della confezione:
• Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall
• Installation Guide
• Mounting Screw
Requisiti di sistema: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Ambiente:
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
