Descrizione

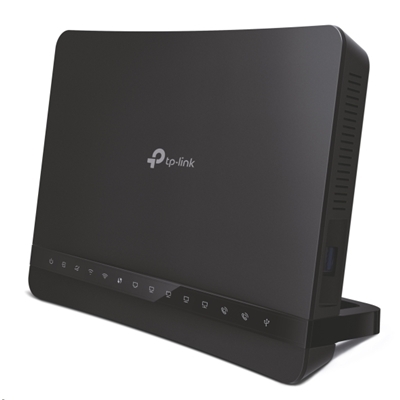

WIRELESS ROUTER AC1200 SUPER VDSL TP-LINK ARCHER VR1210V DUALBAND 867M/5GHZ+300M/2.4GHZ 5P GIGA 1P VDSL2 1P SFP 2P USB-
CARATTERISTICHE HARDWARE
Interfaccia:
– 4 10/100/1000Mbps RJ45 LAN Ports
– 1 10/100/1000Mbps RJ45 WAN Port
– 1 VDSL2 Port 1 SFP cage
– 2 FXS Ports
– 1 USB 3.0 Ports
Tasto: Power On/Off Button, WPS On/Off Button, Wireless On/Off Button, Reset Button
Alimentatore esterno: 12V/1.5A
Standard wireless: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Standard IEEE: IEEE 802.3, IEEE 802.3u, 802.3ab
Standard VDSL2: ITU G.993.2, Up to 35b profile ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP)
Standard ADSL: Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1 (G.DMT) ITU-T G.992.2 (G.Lite) ITU-T G.994.1 (G.hs) ITU-T G.995.1
Standard ADSL2: ITU-T G.992.3 (G.DMT.bis) ITU-T G.992.4 (G.lite.bis)
Standard ADSL2+: ITU-T G.992.5
Dimensioni ( L x P x A ): 8.4 × 5.7 ×3.2 in (214.0 × 144.5 × 80.0 mm)
Antenna: Internal Antennas
Tipo di antenna: Internal antennas
Guadagno antenna: 3 x 2dBi for 2.4GHz and 4 x 2dBi for 5GHz
CARATTERISTICHE WIRELESS
Frequenza: 2.4GHz and 5GHz (Supports DFS)
Signal rate: 867Mbps at 5GHz, 300Mbps at 2.4GHz
Potenza di trasmissione: <20dBm (2.4GHz), <23dBm (5GHz Band1 & Band2), <30dBm (5GHz Band3)
Funzionalità wireless: Enable/Disable Wireless Radio, WMM, Wireless Statistics
Sicurezza wireless: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Schedulazione wireless: Support 2.4GHz and 5GHz Wireless Schedule
CARATTERISTICHE SOFTWARE
QoS (Quality of Service): ATM QoS, QoS
Sicurezza: NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
Gestione: Web Based Configuration (HTTP / HTTPS ), Remote management, Command Line Interface, SSL for TR-069, Firmware Up grade, Diagnostic Tools, Web Based Firmware Upgrade
Port forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS: DynDns, NO-IP
VPN: OpenVPN, PPTP VPN, IPSec VPN
Protocolli: Support IPv4 and IPv6
Protocolli ATM/PPP: ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), MERIPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
Funzionalità avanzate: Parental Controls, Network Address Translation(NAT), Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional), DNS Relay, DD NS, IGMP V1/V2/V3
Condivisione USB: Support Samba (Storage) / FTP Server / Media Server
Rete ospiti: 2.4GHz guest network, 5GHz guest network
VPN IPsec: Support up to 10 IPSec VPN tunnels
ALTRO
Certificazione: CE
Requisiti di sistema: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 , or other Java-enabled browser Cable or DSL Modem
Ambiente:
– Operating Temperature: 0℃~40℃(32℉~104℉)
– Storage Temperature: -40℃~70℃(-40℉~158℉)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
