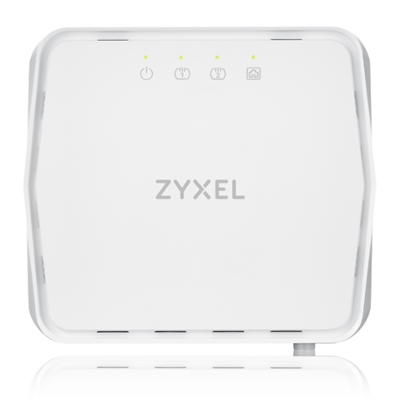

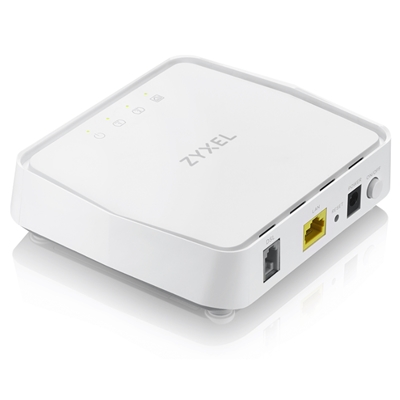

WIRELESS ROUTER ADSL/VDSL ZYXEL VMG4005-B50A-EU01V1 1P LAN GIGABIT – FORMATO MINI-GAR.2 ANNI

Descrizione

WIRELESS ROUTER ADSL/VDSL ZYXEL VMG4005-B50A-EU01V1 1P LAN GIGABIT – FORMATO MINI-GAR.2 ANNI

System Specifications
Bridge Features:
– IEEE 802.1D transparent bridge & basic spanning tree
– PPPoE (RFC 2516)
– PPPoA (RFC 2364)
– MAC Encapsulation Routing / IPoE
– DHCP client/server/relay with DHCP option 43/60/61
– IPv6: Dual Stack, 6RD
QoS:
– 802.1Q VLAN tagging/un-tagging
– Support flexible traffic classification
– Support VLAN staking (QinQ)
Networking:
– LAN Setup
– VLAN Group
– Interface group
Management:
– Web/HTTP: 3 level log-in
– CLI (Command Line Interpreter) via SSH or Telnet
– Firmware upgrade via Web/TFTP/FTP/TR069 RPC method
– Text based configuration (XML based)
– Configuration backup/update/restore default via Web
– Configurable access control for remote management (Interface and / port number)
– Trust Domain (support trust domain list)
– NTP (Internet Time automatically synchronize)
– DSL Forum TR-069, TR-098,TR111, TR181
– Rom-D support
– Session login (for multiple user configuration with login privilege)
– Configuration filter by login privileges
Firewall & Security:
– Generic packet filter
– DoS attack prevention
– Certificates
System Monitor:
– xDSL Statistics
– Traffic Status
– MAC Address Table
– ARP table
– System Log

Hardware Specifications
VDSL:
– G.993.1 VDSL
– G.993.2 VDSL2, Band 997, 998, over POTS
– Support VDSL profiles: 8a/b/c/d, 12a/b, 17a, and 35b
– G.vector
ADSL:
– G.992.1 (G.dmt)
– G.992.2 (G.lite)
– ANSI T1.413 compliant
– G.992.3 (ADSL2)
– G.992.5 (ADSL2+)
– G.INP support
LAN: 1x 10/100/1000 Mbps Ethernet RJ-45 ports
LED indicators: Power, VDSL#1, VDSL#2, LAN
Button: Power On/Off, Reset

Power Consumption
12 V DC/1 A

Physical Specifications
Item dimensions (WxDxH): 130 x 120 x 32 mm (5.11” x 4.72” x 1.25”)
Item weight: 173 g (0.38 lb.)
Packing dimensions (WxDxH): 245 x 142 x 42mm (9.64” x 5.59” x 1.65”)
Packing weight: 380 g (0.84 lb.)

Environmental Specifications
Operating Environment:
– Temperature: 0ºC to 40ºC (32ºF to 104ºF)
– Humidity: 10% to 90% (Non-Condensing)
Storage Environment:
– Temperature: -30ºC to 70ºC (-22ºF to 158ºF)
– Humidity: 10% to 95% (Non-Condensing)

Certification
CE

Package Contents
VDSL2 Bridge Modem
Power adapter
Quick start guide
DoC & Safety warning
