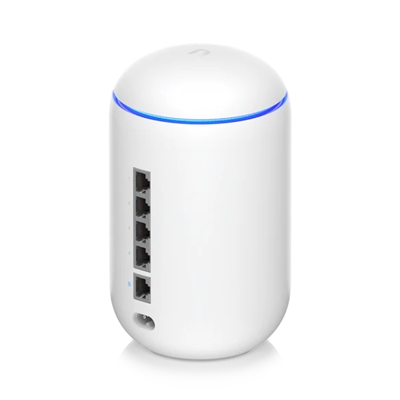

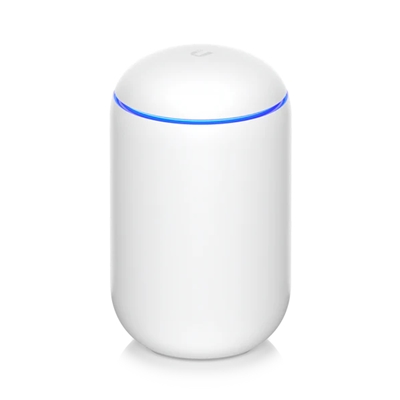

WIRELESS ROUTER BROADBAND UBIQUITI UDM-EU DUAL BAND 802.11AC 4X4 WAVE2-SWITCH GIGABIT 4P-ADVANCED SEC.GATEWAY, CONTR.UNIFI

Descrizione

WIRELESS ROUTER BROADBAND UBIQUITI UDM-EU DUAL BAND 802.11AC 4X4 WAVE2-SWITCH GIGABIT 4P-ADVANCED SEC.GATEWAY, CONTR.UNIFI

Mechanical
Dimensions: Ø 110 x 184.2 mm (Ø 4.33 x 7.25″)
Weight: 1.05 kg (2.32 lb)
Networking Interfaces: (4) LAN 10/100/1000 RJ45 Ports, (1) WAN 10/100/1000 RJ45 Port
Buttons: Reset
IDS/IPS Throughput: 850 Mbps
Processor: Arm Cortex-A57 Quad-Core at 1.7 GHz
System Memory: 2 GB DDR RAM
On-Board Flash Storage: 16 GB
Maximum Power Consumption: 26W
Supported Voltage Range: 100 – 240VAC
Power Method: AC Power Cord
Power Supply: Internal AC/DC Power Adapter (24V, 0.6A, 100 – 240VAC)
Power Save: Supported
Beamforming: Supported
TX Power:
– 2.4 GHz: 23 dBm
– 5 GHz: 26 dBm
Antenna: (1) Dual-Band, Quad-Polarity Antenna
Antenna Gain:
– 2.4 GHz: 3 dBi
– 5 GHz: 4.5 dBi
Wi-Fi Standards: 802.11 a/b/g/n/ac/ac-wave2
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID: Up to 8 per Radio
Operating Temperature: -10 to 45° C (14 to 113° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

Advanced Traffic Management
VLAN: 802.1Q
Advanced QoS: Per-User Rate Limiting
Guest Traffic Isolation: Supported
WMM: Voice, Video, Best Effort, and Background

Supported Data Rates (Mbps)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
