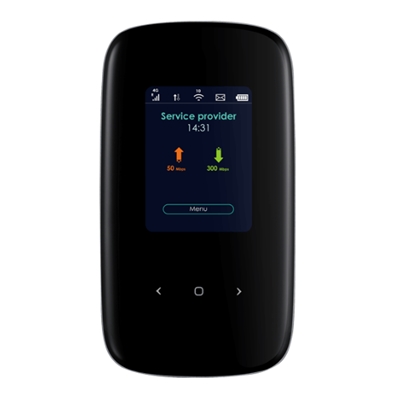

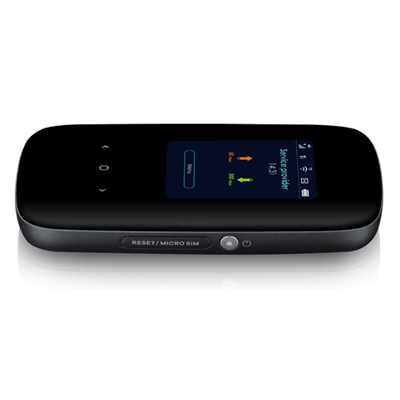

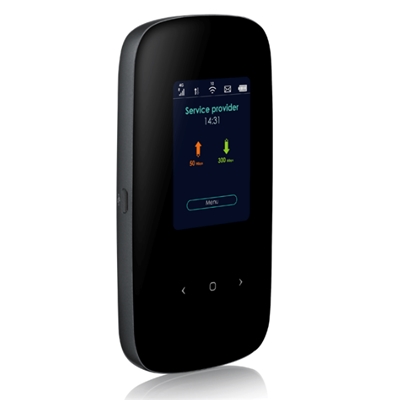

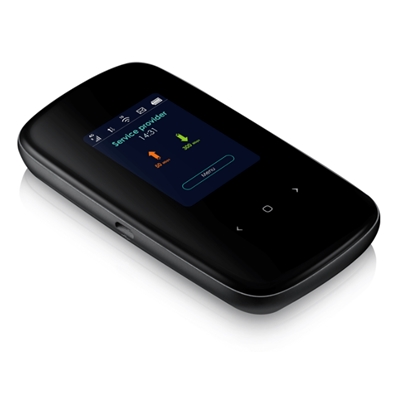

WIRELESS ROUTER LTE ZYXEL LTE2566-M634-EUZNV1F PORTATILE CAT6, SLOT SIM CARD 3G/LTE

Descrizione

WIRELESS ROUTER LTE ZYXEL LTE2566-M634-EUZNV1F PORTATILE CAT6, SLOT SIM CARD 3G/LTE

System Specifications
WiFi AP Features:
– 802.11 ac/n/a/g/b, 2.4 GHz & 5 GHz dual-band
– Auto Channel Select (ACS)
– WiFi Enabled Device #: up to 32
– Hidden SSID
– Security modes: Open, WPA2-PSK, WPA-PSK/WPA2-PSK
– AP power saving mode
– Access control: STA blacklist/white list
– MAC filtering
– Dual-SSID support
– WPS: Pin and PBC, WPS2.0
System Features:
– Web UI/multiple language supported
– SMS/Quota/APN/PIN management
– Network selection
– Data usage/statistic
– DHCP server
– Dynamic DNS
– IP/URL filtering
– NAT Port forwarding/trigger/ALG/DMZ
– IP firewall
– Proxy DNS
– VPN pass-through
– FOTA firmware upgrade
– TR-069 remote management
– USSD management
USB Tethering System Supported:
– Win XP, Win Vista, Win 7, Win 8, Win 10
– MAC OS X10.7, 10.8, 10.9, 10.10 , 10.11, 10.12, 10.13
– Ubuntu 12.04 LTS, 14.04 LTS
Browser Client:
– Internet Explorer
– Edge
– Firefox
– Chrome
– Safari

LTE Air Interface
Standard compliant: 3GPP release 10, category 6
Supported frequency: LTE B1/B3/B7/B8/B20/B28a/B38/B40/B41
Carrier aggregation support:
– B1+B1/B3/B/B8/B20/B28a/38/40/41
– B3+B3/B7/B8/B20/28a/B38/B40/B41
– B7+B7/B8/B20/B28a
– B20+B38/40
– B38+B38, B40+B40, B41+B41
FDD LTE peak data rate:
– 300 Mbps DL within 40 MHz bandwidth (CA)
– 50 Mbps UL within 20 MHz bandwidth
TDD LTE peak data rate:
– 224 Mbps DL within 40MHz bandwidth (CA)
– 10 Mbps UL within 20 MHz bandwidth

UMTS Air Interface
Standard compliant: DC-HSDPA/ HSPA+ compliant
Supported frequency: HSPA+/UMTS 2100/900 MHz (band 1/8)
DC-HSPA+ downlink DL up to 42 Mbps
HSUPA UL up to 5.76 Mbps

Hardware Interface
One 3FF/Micro SIM card slot
One USB port for power supply or USB with RNDIS
Reset button
Power button
Left, Home/OK, Right (touch sensing keys)
DC input (5V/1.5A, Micro USB)
2.4-inch TFT display
Service provider name
3G/4G network status
Roaming status
Signal strength
Battery status
WiFi status

Battery
3000 mAh Lithium-ion polymer, un-removable battery
Up to 10 hours operating time
Up to 300 hours standby time

Physical Specifications
Item dimensions (WxDxH): 118.2 x 65 x 15.7 mm (4.65″ x 2.56″ x 0.618″)
Item weight: 130 g (0.29 lb.)
Packing dimensions (WxDxH): 150 x 80 x 50 mm (5.90″ x 3.15″ x 1.97″)
Packing weight: 270g (0.59lb.)

Environmental Specifications
Operating Environment:
– Temperature: 0°C to 40°C (32°F to 104°F)
– Humidity: 5% to 95% (Non-condensing)
Storage Environment:
– Temperature: -20°C to 60°C (-4°F to 140°F)
– Humidity: 5% to 95% (Non-condensing)

Compliance & Certifications
UN38.3
CE: EMC/RF/SAR/Safety
WiFi Alliance
WEEE
2011/65/EC (RoHS) Restriction of
Hazardous Substances Directive
HSF (Hazardous Substance Free)
European Parliament and Council
Directive 94/62/EC of 20 December
1994 on packaging and packaging waste
