WIRELESS ROUTER UBIQUITI UDR DREAM ROUTER DUAL BAND 4X4 MIMO 128GB MEM.INT. 1P WAN GBE RJ45 – 4P LAN INCL.2 USCITE POE 802.3AF

Descrizione

WIRELESS ROUTER UBIQUITI UDR DREAM ROUTER DUAL BAND 4X4 MIMO 128GB MEM.INT. 1P WAN GBE RJ45 – 4P LAN INCL.2 USCITE POE 802.3AF

Mechanical

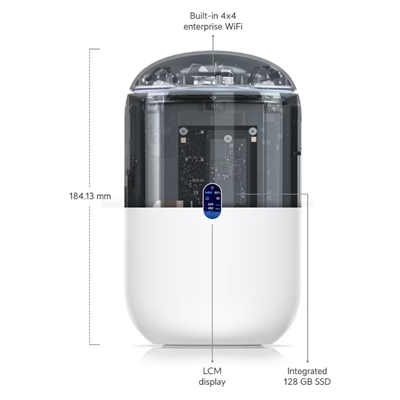

Dimensions: Ø110 x 184.1 mm (Ø4.33 x 7.3″)
Weight: 1.2 kg (2.5 lb)
Enclosure material: Polycarbonate

Hardware
Processor: Dual-core Arm® Cortex® A53 at 1.35 GHz
System memory: 2 GB
Expansion slot: Micro SD memory card (Optional)
Management interface:
– Ethernet
– Bluetooth
Networking interface:
– (4) LAN: GbE RJ45 ports
– (1) WAN: GbE RJ45 port
PoE interface: (2) PoE
Power method: Universal AC input, 100—240V AC, 1.1A Max., 50/60 Hz
Power supply: AC/DC, internal, 50W
Supported voltage range: 100—240V DC
Max. power consumption: 19.37W (Excluding PoE output)
PoE budget: 32W
Max. PoE wattage per port by PSE: 15.4W
Voltage range PoE mode: 44—57V DC
Max. TX power:
– 2.4 GHz: 26 dBm
– 5 GHz: 26 dBm
MIMO:
– 2.4 GHz: 4 x 4
– 5 GHz: 4 x 4
Throughput rate:
– 2.4 GHz: 600 Mbps
– 5 GHz: 2.4 Gbps
Antenna gain:
– 2.4 GHz: 3.4 dBi
– 5 GHz: 4.3 dBi
Antenna: (1) Internal, dual-band, quad-polarity antenna
LCM display: (1) 0.96″ screen
Button: Factory reset
LEDs: White/blue
Operating temperature: -10 to 45° C (14 to 113° F)
Operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC

Software
WiFi standards:
– 802.11a/b/g
– WiFi 4/WiFi 5/WiFi 6
Wireless security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 300+

Supported Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
